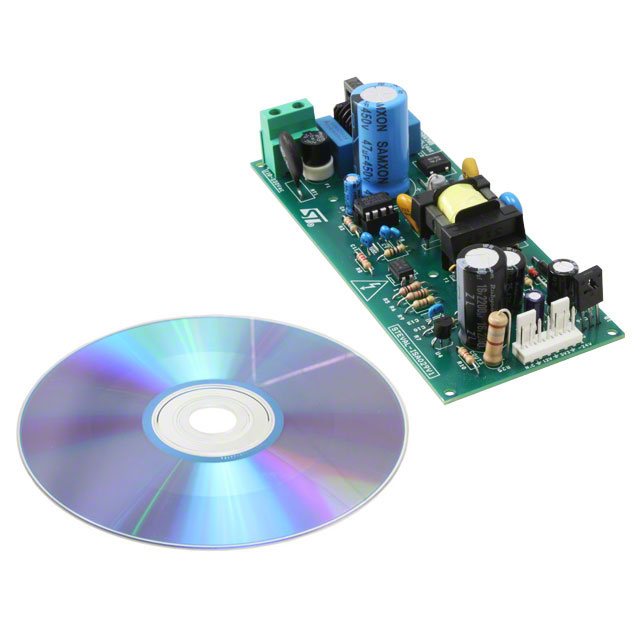

STEVAL-ISA029V1
ObsoleteSTMicroelectronics
EVAL BOARD FOR VIPER53
STEVAL-ISA029V1
ObsoleteSTMicroelectronics
EVAL BOARD FOR VIPER53
Description
General part information
STEVAL-ISA029V1
VIPer53 VIPER™ 3 Isolated Outputs AC/DC, Primary Side Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ISA029V1 |
|---|---|
| Contents | Board |
| Current - Output (Value 1) | 1 A |
| Current - Output (Value 2) | 100 mA |
| Current - Output (Value 3) | 40 mA |
| Frequency - Switching | 60 kHz |
| Isolated Output Count | 3 |
| Main Purpose | Primary Side, AC/DC |
| Output Type | Isolated |
| Power - Output | 13 W |
| Regulator Topology | Flyback |
| Total Output Count | 3 |
| Utilized IC / Part | VIPer53 |
| Voltage - Input (AC) Maximum | 300 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output | -24 V, 12 V, 3.3 V |
