1241.6621.1120000

Active

SCHURTER Inc.

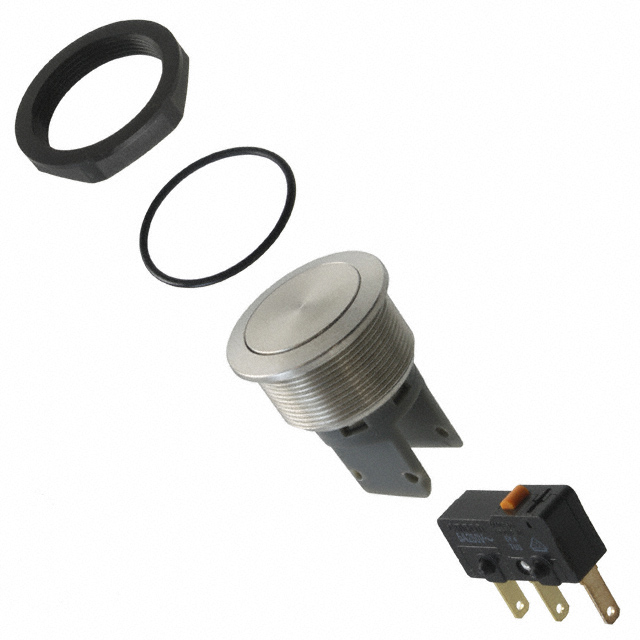

SWITCH PUSHBUTTON SPDT 5A 125V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 5A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.6621.1120000	1241.6621 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	SPDT
Color - Actuator/Cap	Silver	Silver
Current Rating (Amps)	5 A	5 - 100 A
Electrical Life	200000 Cycles	200000 Cycles
Ingress Protection	IP40	IP40
Mechanical Life	1500000 Cycles	1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	19.1 mm	19.1 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal	Anti-Vandal
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	-	30 V

SWITCH PUSHBUTTON SPDT 5A 125V

Part	Electrical Life	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Color - Actuator/Cap	Current Rating (Amps)	Actuator Type	Type	Circuit	Mechanical Life	Switch Function	Actuator Marking	Ingress Protection	Voltage Rating - DC
SCHURTER Inc. 1241.6621.1120000	200000 Cycles	Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	Panel Mount, Front	19.1 mm	125 V	Silver	5 A	Button, Flush, Round	Anti-Vandal	SPDT	1500000 Cycles	On-Mom	No Marking	IP40
SCHURTER Inc. 1241.6621.1110000	200000 Cycles	Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	Panel Mount, Front	19.1 mm		Silver	100 mA	Button, Flush, Round	Anti-Vandal	SPDT	1500000 Cycles	On-Mom	No Marking	IP40	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 14.95

General part information

Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
