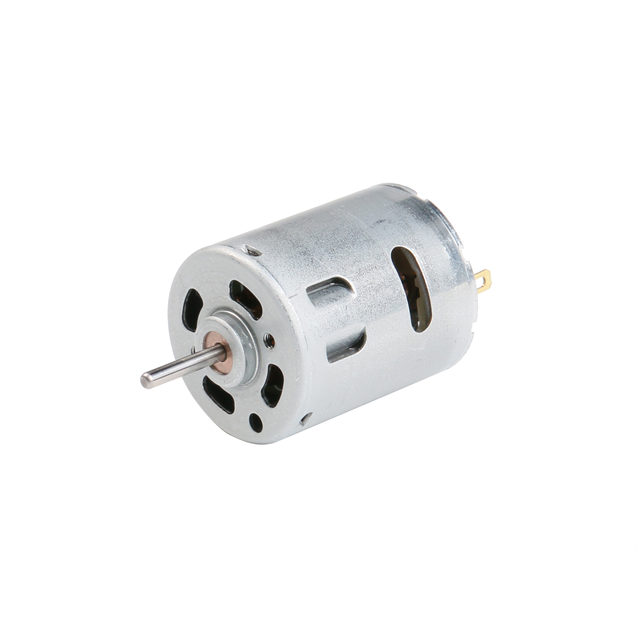

HC385G-304

Active

Johnson Motor

LOW VOLTAGE DC MOTORS

Search across all available documentation for this part.

Active

Johnson Motor

LOW VOLTAGE DC MOTORS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brushed DC Motor Standard 8100 RPM 14.7W 24VDC

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	HC385G-304	HC385G Series

Diameter - Shaft [diameter]	0.091 in	0.091 in
Diameter - Shaft [diameter]	2.3 mm	2.3 mm
Function	Standard	Standard
Motor Type	Brushed	Brushed
Mounting Hole Spacing	0.63 in	0.63 in
Mounting Hole Spacing	16 mm	16 mm
Operating Temperature [Max] [custom]	55 °C	55 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Power - Rated	14.7 W	14.7 W
RPM	8100 RPM	8100 RPM
Size / Dimension	-	30.48 mm
Size / Dimension	-	Round
Size / Dimension [diameter]	1.1 "	1.1 "
Size / Dimension [diameter]	27.94 mm	1.2 - 27.94 "
Termination Style	Solder Tab	Solder Tab
Torque - Max Momentary (oz-in / mNm)	4.52 mNm	4.52 - 7.91 mNm
Torque - Max Momentary (oz-in / mNm)	0.64 oz-in	0.64 - 1.12 oz-in
Torque - Rated (oz-in / mNm)	0.48 oz-in	0.48 oz-in
Torque - Rated (oz-in / mNm)	3.42 mNm	3.42 mNm
Type	DC Motor	DC Motor
Voltage - Rated	24 VDC	18 - 24 VDC
Weight	51.03 g	51.03 - 70.87 g
Weight	0.113 lb	0.113 - 0.156 lb

LOW VOLTAGE DC MOTORS

Part	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Termination Style	Motor Type	Weight	Weight	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	Function	Mounting Hole Spacing	Mounting Hole Spacing	Voltage - Rated	Type	Size / Dimension [diameter]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	RPM	Power - Rated
Johnson Motor HC385G-303	0.091 in	2.3 mm	55 °C	-10 °C	7.91 mNm	1.12 oz-in	Solder Tab	Brushed	0.156 lb	70.87 g	30.48 mm	Round	1.2 "	Standard	0.63 in	16 mm	18 VDC	DC Motor
Johnson Motor HC385G-304	0.091 in	2.3 mm	55 °C	-10 °C	4.52 mNm	0.64 oz-in	Solder Tab	Brushed	0.113 lb	51.03 g			27.94 mm	Standard	0.63 in	16 mm	24 VDC	DC Motor	1.1 "	0.48 oz-in	3.42 mNm	8100 RPM	14.7 W
