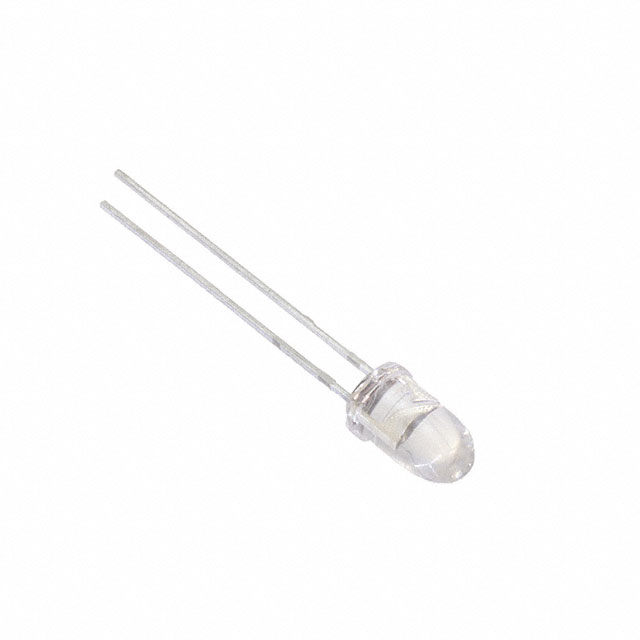

Specification	EALP05RDGOA0

Color	Orange
Current - Test	20 mA
Height (Max)	8.9 mm
Lens Color	Colorless
Lens Size	5 mm
Lens Size (Code)	T-1 3/4
Lens Style	Round, Domed Top
Lens Transparency	Clear
Millicandela Rating	8000 mcd
Mounting Type	Through Hole
Package / Case	Radial
Package Name	5mm Round
Supplier Device Package Shape	Round
Supplier Device Package Size	5 mm
Viewing Angle	6 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	615 nm
Wavelength - Peak	621 nm

EALP05 Series

Part	Mounting Type	Millicandela Rating	Wavelength - Peak	Current - Test	Color	Wavelength - Dominant	Lens Diameter	Lens Transparency	Voltage - Forward (Vf) (Typ)	Configuration	Supplier Device Package	Lens Color	Viewing Angle	Height (Max)	Package / Case	Lens Style	Lens Size	Lens Size (Code)	Package Dimension	Package Name	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Millicandela Rating Colors	Millicandela Rating (Yellow)	Millicandela Rating (Green)	Current - Test (Green)	Current - Test Colors	Wavelength - Peak Colors	Wavelength - Peak (Yellow)	Wavelength - Peak (Green)	Wavelength - Dominant	Wavelength - Dominant Color	Wavelength - Dominant (Yellow)	Wavelength - Dominant (Green)	Wavelength - Dominant (Primary)	Wavelength - Dominant (Secondary)	Supplier Device Package Size	Supplier Device Package Shape
Everlight Electronics Co Ltd EALP05RDDGA5	Through Hole	125 mcd	575 nm	20 mA	Yellow-Green	573 nm	5 mm	Diffused	2 V	Standard	5 mm	White	35 °	8.9 mm	Radial	Domed Top Round
Everlight Electronics Co Ltd EALP05RDEWA1	Through Hole	6750 mcd		20 mA	White			Clear	3.2 V	Standard		Colorless	50 °	8.9 mm	Radial	Domed Top Round	5 mm	T-1 3/4	5 mm	T-1 3/4 T-1 3/4 (5mm)
Everlight Electronics Co Ltd EALP05RDKBA0	Through Hole	2000 mcd	468 nm	20 mA	Blue	470 nm		Clear	3.3 V			Colorless	20 °	8.85 mm	Radial	Domed Top Round	5 mm	T-1 3/4	5 mm	T-1 3/4 T-1 3/4 (5mm)
Everlight Electronics Co Ltd EALP05RDGRA0	Through Hole	2000 mcd	650 nm	20 mA	Red	639 nm	5 mm	Clear	2 V	Standard	5 mm	Colorless	6 °	8.9 mm	Radial	Domed Top Round
Everlight Electronics Co Ltd EALP05RDAYA1	Through Hole	80 mcd	575 nm	20 mA	Yellow-Green	573 nm	4.7 mm	Diffused	2 V	Standard	5 mm	Green	45 °	7.54 mm	Radial	Domed Top Round
Everlight Electronics Co Ltd EALP05RDDYA6	Through Hole	3200 mcd	591 nm	20 mA	Yellow	589 nm	5 mm	Clear	2 V	Standard	5 mm	Colorless	10 °	8.9 mm	Radial	Domed Top Round
Everlight Electronics Co Ltd EALP05RDEWA4	Through Hole	10700 mcd		20 mA	White			Clear	3.2 V	Standard		Colorless	20 °	8.9 mm	Radial	Domed Top Round	5 mm	T-1 3/4	5 mm	T-1 3/4 T-1 3/4 (5mm)
Everlight Electronics Co Ltd EALP05RDEWA3	Through Hole	21375 mcd		20 mA	White			Clear	3.2 V	Standard		Colorless	15 °	8.9 mm	Radial	Domed Top Round	5 mm	T-1 3/4	5 mm	T-1 3/4 T-1 3/4 (5mm)
Everlight Electronics Co Ltd EALP05RDCYGA0	Through Hole			20 mA	Green Yellow		5 mm	Diffused		Bidirectional	5 mm	White	80 °	8.9 mm	Radial	Domed Top Round					Green Yellow	2 V	Green Yellow	80 mcd	32 mcd	20 mA	Green Yellow	Green Yellow	591 nm	575 nm	573nm Green 589nm Yellow	Green Yellow	589 nm	573 nm	573 nm	589 nm
Everlight Electronics Co Ltd EALP05RDGRA2	Through Hole	2500 mcd	632 nm	20 mA	Red	624 nm		Clear	2 V			Colorless	6 °	8.9 mm	Radial	Domed Top Round	5 mm	T-1 3/4		5mm Round																	5 mm	Round
