RV14-516Q

Active

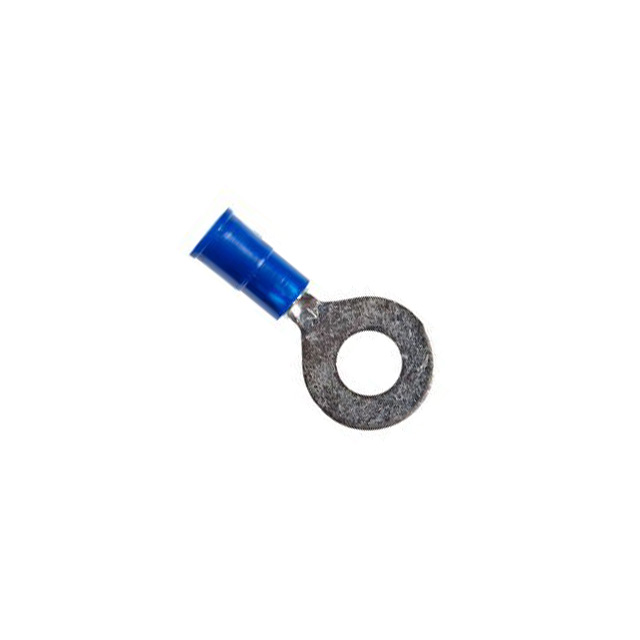

RING VINYL INSULATED HIGHLAND BAG 25/BAG

Search across all available documentation for this part.

Active

RING VINYL INSULATED HIGHLAND BAG 25/BAG

Technical Specifications

Parameters and characteristics commom to parts in this series

RING VINYL INSULATED HIGHLAND BAG 25/BAG

Part	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Mounting Type	Color	Contact Finish	Material - Insulation	Termination	Thickness	Thickness	Contact Material	Features	Terminal Type	Stud/Tab Size	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall
3M RV14-516Q	Insulated	0.47 in	11.94 mm	Free Hanging (In-Line)	Blue	Tin	Vinyl	Crimp	0.03 in	0.76 mm	Copper, ETP	Butted Seam	Circular	0.3125 Stud
3M RV14-14L	Insulated	0.47 in	11.94 mm	Free Hanging (In-Line)	Blue	Tin	Vinyl	Crimp	0.03 in	0.76 mm	Copper, ETP	Butted Seam	Circular	0.25 Stud
3M RV14-516L	Insulated	0.47 in	11.94 mm	Free Hanging (In-Line)	Blue	Tin	Vinyl	Crimp	0.03 in	0.76 mm	Copper, ETP	Butted Seam	Circular	0.3125 Stud
3M RV14-8C	Insulated	0.33 in	8.38 mm	Free Hanging (In-Line)	Blue	Tin	Vinyl	Crimp	0.03 in	0.76 mm	Copper, ETP	Butted Seam	Circular		8 Stud	20.32 mm	0.8 in
3M RV14-8L	Insulated	0.33 in	8.38 mm	Free Hanging (In-Line)	Blue	Tin	Vinyl	Crimp	0.03 in	0.76 mm	Copper, ETP	Butted Seam	Circular		8 Stud	20.32 mm	0.8 in
3M RV14-10C	Insulated	0.33 in	8.38 mm	Free Hanging (In-Line)	Blue	Tin	Vinyl	Crimp	0.03 in	0.76 mm	Copper, ETP	Butted Seam	Circular	10 Stud				0.9 in	22.86 mm
3M RV14-6C	Insulated	0.25 "	6.35 mm	Free Hanging (In-Line)	Blue	Tin	Vinyl	Crimp	0.03 in	0.76 mm	Copper, ETP	Butted Seam	Circular	6 Stud		17.02 mm	0.67 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 5/16 Stud Circular 14-16 AWG Crimp
