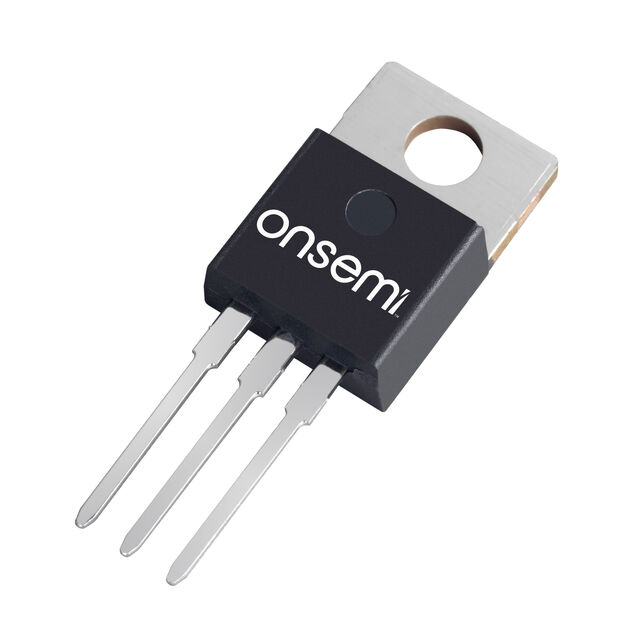

Specification	FCPF165N65S3L1-F154

Current - Continuous Drain (Id) (Tj)	19 A
Drain to Source Voltage (Vdss)	650 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Max)	35 nC
Input Capacitance (Ciss) (Max)	1415 pF
Mounting Type	Through Hole
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	TO-220-3 Full Pack
Package Name	TO-220F-3
Power Dissipation (Max)	35 W
Rds On (Max)	165 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	30 V
Vgs(th) (Max)	4.5 V
