35HDNAUS

Active

Switchcraft Inc.

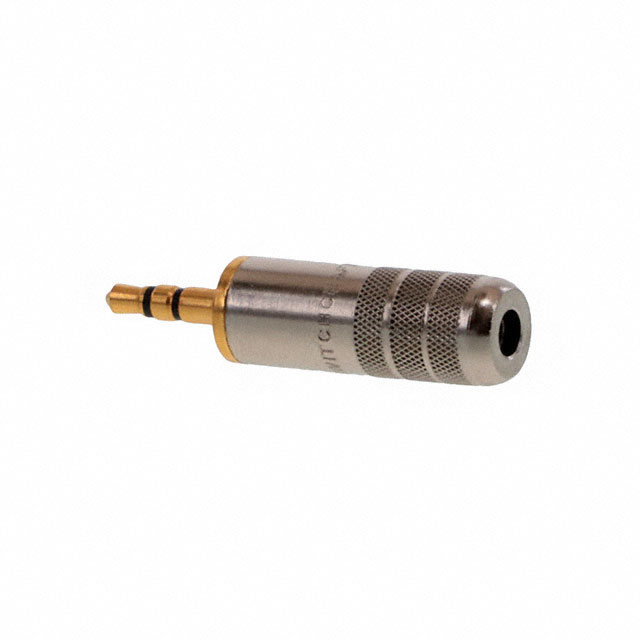

CONN PLUG STEREO 3.5MM 3COND

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG STEREO 3.5MM 3COND

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	35HDNAUS	35HDNA Series

Actual Diameter [diameter]	0.138 "	0.138 "
Actual Diameter [diameter]	3.5 mm	3.5 mm
Body Color	Silver	Silver
Body Material	Brass	Brass
Cable Opening	-	7.37 mm
Cable Opening	-	0.29 in
Cable Opening [diameter]	0.175 in	0.175 in
Cable Opening [diameter]	4.44 mm	4.44 mm
Connector Type	Phone Plug	Phone Plug
Contact Material	Brass	Brass
Contact Material - Plating [custom]	Gold	Gold
Current Rating (Amps)	4 A	4 A
Gender	Male	Male
Housing Material	Brass	Brass
Includes	1 Connector, 1 Insulator Tube, 1 Handle	1 Connector, 1 Insulator Tube, 1 Handle
Industry Recognized Mating Diameter	0.141 "	0.141 "
Industry Recognized Mating Diameter	0.125 "	0.125 "
Industry Recognized Mating Diameter	3.5 mm	3.5 mm
Internal Switch(s)	False	False
Mating Length/Depth	14.2 mm	14.2 mm
Mating Length/Depth	0.56 in	0.56 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3
Shielding	Unshielded	Unshielded
Signal Lines	Stereo	Stereo
Termination	Solder	Solder

CONN PLUG STEREO 3.5MM 3COND

Part	Internal Switch(s)	Body Material	Signal Lines	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Contact Material	Mating Length/Depth	Mating Length/Depth	Includes	Termination	Contact Material - Plating [custom]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Shielding	Mounting Type	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Body Color	Housing Material	Gender	Actual Diameter [diameter]	Actual Diameter [diameter]	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. 35HDNAUS		Brass	Stereo	Phone Plug	0.175 in	4.44 mm	4 A	Brass	14.2 mm	0.56 in	1 Connector, 1 Handle, 1 Insulator Tube	Solder	Gold	3	3	Unshielded	Free Hanging (In-Line)	0.141 "	0.125 "	3.5 mm	Silver	Brass	Male	0.138 "	3.5 mm
Switchcraft Inc. 35HDNAU		Brass	Stereo	Phone Plug			4 A	Brass	14.2 mm	0.56 in	1 Connector, 1 Handle, 1 Insulator Tube	Solder	Gold	3	3	Unshielded	Free Hanging (In-Line)	0.141 "	0.125 "	3.5 mm	Silver	Brass	Male	0.138 "	3.5 mm	7.37 mm	0.29 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder
