SCE2-B-L1K09-26PN

Active

Amphenol

CONN RCPT MALE 26P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

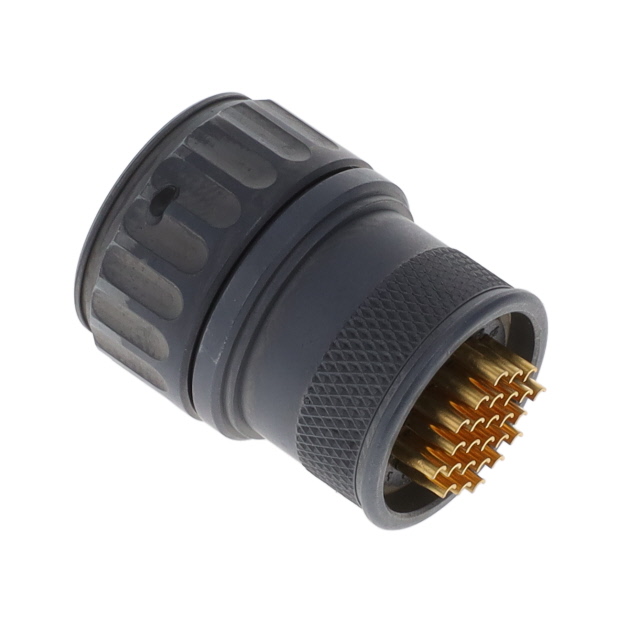

SCE2-B-L1K09-26PN

Active

Amphenol

CONN RCPT MALE 26P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 104.76

Description

General part information

SCE2-B Series

26 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SCE2-B-L1K09-26PN	SCE2-B Series

Backshell Material, Plating	Brass, Black Silver	Brass, Black Silver
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3 A, 1.5 A, 7.5 A	1.5 - 7.5 A
Fastening Type	Push-Pull	Push-Pull
Features	Coupling Nut, Backshell	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Through Hole, Panel Mount
Number of Positions	26	7 - 37
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Black	Black
Shell Material	Brass	Brass
Shell Size - Insert	-	10-37, 7-A10
Shell Size - Insert [Max]	26	7 - 26
Shell Size - Insert [Min]	9	6 - 9
Shielding	Unshielded	Unshielded
Termination	-	Solder
Voltage Rating	400 VAC	400 VAC
