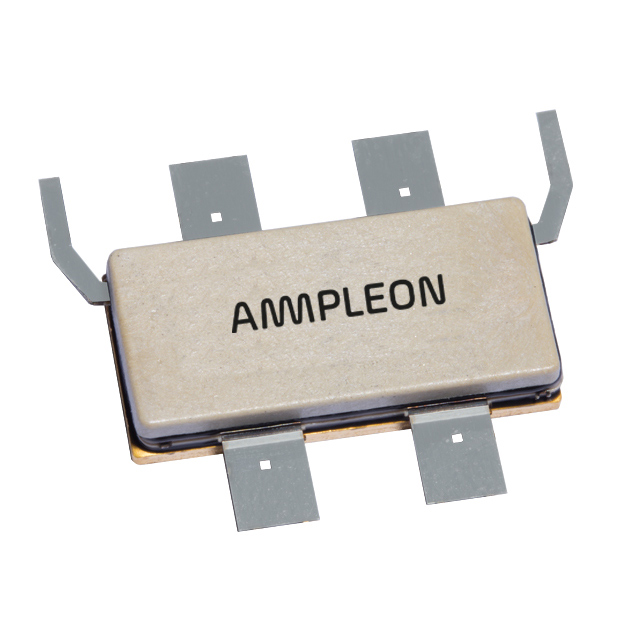

BLC8G21LS-160AVZ

Active

Ampleon USA Inc.

RF MOSFET LDMOS 28V DFM6

Search across all available documentation for this part.

Active

Ampleon USA Inc.

RF MOSFET LDMOS 28V DFM6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 28 V 200 mA 1.88GHz ~ 2.03GHz 15dB 22.5W DFM6

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RF MOSFET LDMOS 32V SOT1258-7

Part	Supplier Device Package	Current Rating (Amps)	Package / Case	Power - Output	Current - Test	Gain	Mounting Type	Voltage - Rated	Frequency [Min]	Frequency [Max]	Voltage - Test	Configuration
Ampleon USA Inc. BLC8G09XS-400AVTZ	SOT-1258-7	2.8 µA	SOT-1258-7	540 W	880 mA	17 dBi	Surface Mount	65 V	791 MHz	960 MHz	32 V
Ampleon USA Inc. BLC8G27LS-140AVY	DFM6		SOT-1275-1	28 W	320 mA	14.5 dBi	Chassis Mount	65 V	2.5 GHz	2.69 GHz	28 V	Common Source, Dual
Ampleon USA Inc. BLC8G27LS-60AVY	SOT-1275-3		SOT-1275-3				Chassis Mount
Ampleon USA Inc. BLC8G27LS-210PVY	8-DFM		SOT-1251-3	65 W	1.73 A	17 dBi	Chassis Mount	65 V	2.6 GHz	2.7 GHz	28 V	Common Source, Dual
Ampleon USA Inc. BLC8G24LS-241AVY	DFM8		SOT-1252-1	56 W		14.5 dBi	Chassis Mount	65 V			28 V	Common Source, Dual
Ampleon USA Inc. BLC8G27LS-210PVZ	8-DFM		SOT-1251-3	65 W	1.73 A	17 dBi	Chassis Mount	65 V	2.6 GHz	2.7 GHz	28 V	Common Source, Dual
Ampleon USA Inc. BLC8G22LS-450AVY	DFM6		SOT-1258-3	85 W	1 A	14 dBi	Chassis Mount	65 V	2.11 GHz	2.17 GHz	28 V	Common Source, Dual
Ampleon USA Inc. BLC8G22LS-450AVZ	DFM6		SOT-1258-3	85 W	1 A	14 dBi	Chassis Mount	65 V	2.11 GHz	2.17 GHz	28 V	Common Source, Dual
Ampleon USA Inc. BLC8G27LS-60AVZ	SOT-1275-3		SOT-1275-3				Chassis Mount
Ampleon USA Inc. BLC8G27LS-240AVJ	DFM8		SOT-1252-1	56 W		14 dBi	Chassis Mount	65 V	2.5 GHz	2.69 GHz	28 V	Common Source, Dual
