FC7BQCCMM8.0-T1
ObsoleteFox Electronics

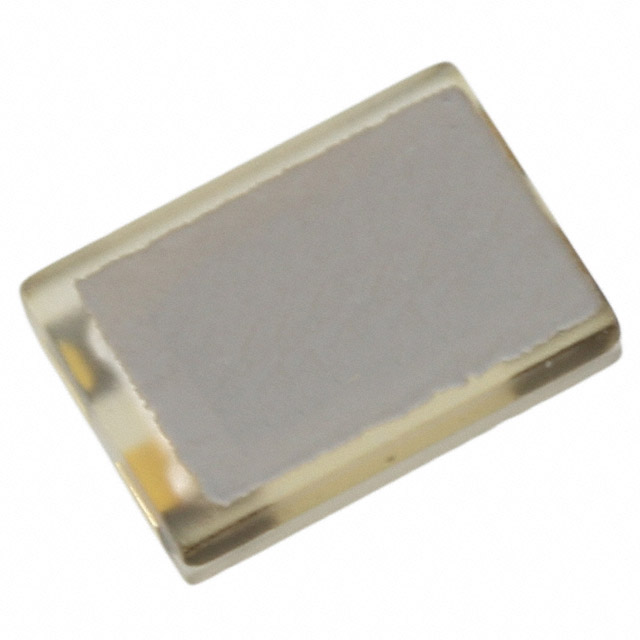

CRYSTAL 8.0000MHZ 20PF SMD
FC7BQCCMM8.0-T1
ObsoleteFox Electronics
CRYSTAL 8.0000MHZ 20PF SMD
Description
General part information
FC7BQCCMM8.0-T1
8 MHz ±30ppm Crystal 20pF 80 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | FC7BQCCMM8.0-T1 |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 8 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.051 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 7 mm |
| Package Name | 4-SMD |
| Package Width | 5 mm |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | MHz Crystal |
