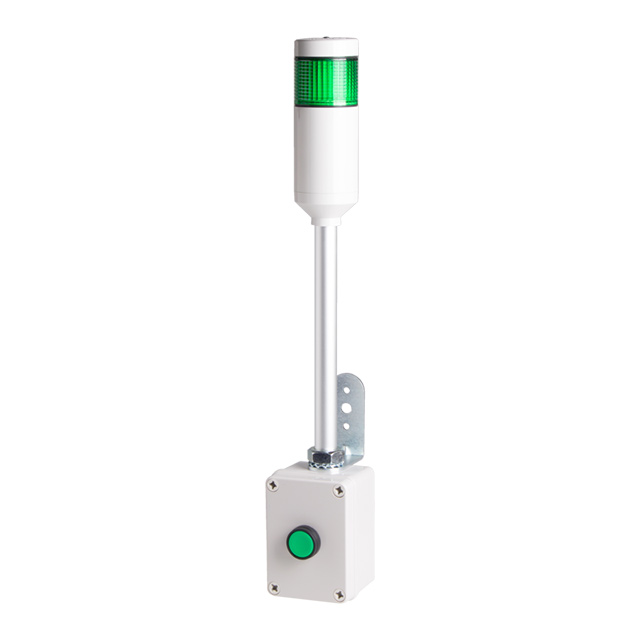

Specification	ATEP-G

Features	Pushbutton Control
Function - Lighting	Steady
Lamp Type	LED
Light Color	Green
Number of Stacks	1
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	-15 °C
Termination Style	Cable with Connector
Type	Complete Unit
Voltage - Supply	110 VAC

- Series

Part	Lamp Type	Light Color	Function - Lighting	Termination Style	Number of Stacks	Voltage - Supply	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection IP Rating	Ingress Protection Description	Type	Voltage - Supply (Option 1)	Voltage - Supply (Option 2)	Features	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
Menics MT4B5DL	Incandescent	Blue Clear Green Red Yellow	Steady	Wire Leads	5	12 VDC	-15 °C	40 °C	IP54	Dust Protected Water Resistant	Complete Unit
Menics MT4B2AL	Incandescent	Green Red	Steady	Wire Leads	2	24 VDC	-15 °C	40 °C	IP54	Dust Protected Water Resistant	Complete Unit	24 VAC	24 DC
Menics MT4B5BL	Incandescent	Blue Clear Green Red Yellow	Steady	Wire Leads	5	110 VAC	-15 °C	40 °C	IP54	Dust Protected Water Resistant	Complete Unit
Menics ATES-R	LED	Red	Flashing	Cable with Connector	1	110 VAC	-15 °C	40 °C			Complete Unit			Selector Control
Menics PTM-02-RYG	LED	Green Red Yellow	Flashing Steady	Connector	1		-15 °C	40 °C	IP65	Dust Tight Water Resistant	Optical Element
Menics PTM-A-102-RYG-B	LED	Green Red Yellow	Steady	Wire Leads	1	24 VDC	-15 °C	40 °C	IP65	Dust Tight Water Resistant	Complete Unit	24 VAC	24 DC
Menics ATES-G	LED	Green	Steady	Cable with Connector	1	110 VAC	-15 °C	40 °C			Complete Unit			Selector Control
Menics MT4B2DL	Incandescent	Green Red	Steady	Wire Leads	2	12 VDC	-15 °C	40 °C	IP54	Dust Protected Water Resistant	Complete Unit
Menics PTM-A-1FF-RYG-B	LED	Green Red Yellow	Steady	Wire Leads	1		-15 °C	40 °C	IP65	Dust Tight Water Resistant	Complete Unit				240 VAC	90 VAC
Menics PTM-A-1FF-RBG-B	LED	Blue Green Red	Steady	Wire Leads	1		-15 °C	40 °C	IP65	Dust Tight Water Resistant	Complete Unit				240 VAC	90 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ATEP-G | Datasheet
