1410970-3

Active

TE Connectivity AMP Connectors

CONN PLUG VITA46 112POS EDGE MNT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG VITA46 112POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1410970-3

Color	Black
Connector Style	VITA 46, Center
Connector Type	Plug, Male Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Layout, Typical [custom]	36
Contact Layout, Typical [custom]	44
Contact Layout, Typical [custom]	16
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	16
Number of Positions	112
Number of Positions Loaded	All
Number of Rows	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Press-Fit
Voltage Rating	50 V

CONN PLUG VITA46 112POS EDGE MNT

Part	Contact Finish	Number of Positions Loaded	Pitch [x]	Pitch [x]	Connector Type	Voltage Rating	Number of Columns	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Style	Material Flammability Rating	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Mounting Type	Number of Positions	Connector Usage	Features	Operating Temperature [Max]	Operating Temperature [Min]	Termination
TE Connectivity AMP Connectors 1410970-3	Gold	All	0.071 in	1.8 mm	Plug, Male Blades	50 V	16	Black	50 µin	1.27 µm	7	Center, VITA 46	UL94 V-0	36	44	16	Board Edge, Right Angle, Through Hole	112	Daughtercard	Board Guide	105 ░C	-55 °C	Press-Fit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	153	$ 92.25

General part information

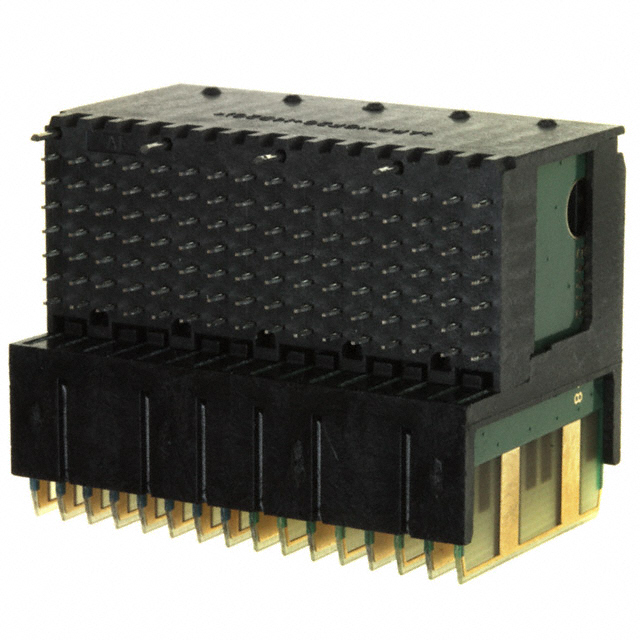

112 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 46, Center
