1375963-4
ActiveTE Connectivity AMP Connectors

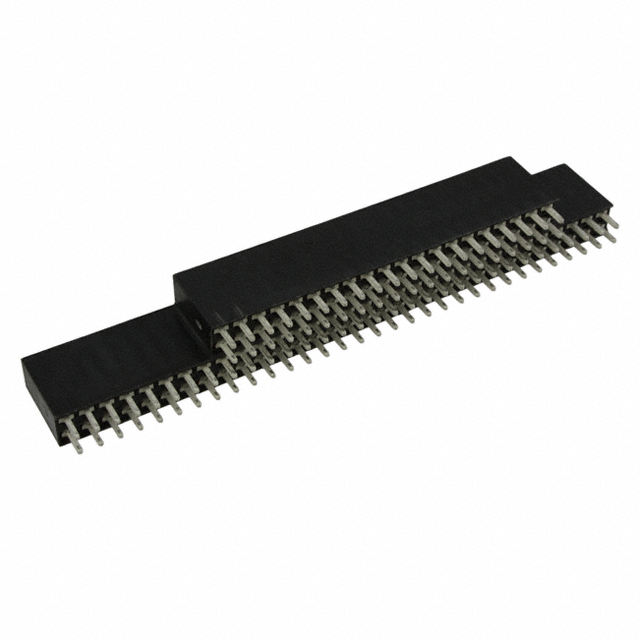

CONN NON-STKTHR PC/104+ 104P PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1375963-4
ActiveTE Connectivity AMP Connectors
CONN NON-STKTHR PC/104+ 104P PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1375963-4 | 1375963 Series |
|---|---|---|
| Color | Black | Black |
| Connector Style | PC/104 Plus | PC/104, PC/104 Plus |
| Connector Type | Non-Stackthrough, Unkeyed (PC/104) | Non-Stackthrough, Keyed (PC/104), Non-Stackthrough, Unkeyed (PC/104) |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 104 | 104 |
| Number of Positions Loaded | All | All |
| Number of Positions Loaded | - | 102 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Termination | Solder | Solder |
1375963 Series
CONN NON-STKTHRU PC/104 104P PCB
| Part | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Color | Material Flammability Rating | Connector Style | Number of Positions Loaded | Connector Type | Number of Positions | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1375963-3 | Gold | 105 ░C | -55 °C | Solder | Through Hole | 15 µin | 0.38 µm | 2.54 mm | 0.1 in | Black | UL94 V-0 | PC/104 | 102 | Non-Stackthrough, Keyed (PC/104) | 104 | |
TE Connectivity AMP Connectors 1375963-1 | Gold | 105 ░C | -55 °C | Solder | Through Hole | 15 µin | 0.38 µm | 2.54 mm | 0.1 in | Black | UL94 V-0 | PC/104 | 102 | Non-Stackthrough, Keyed (PC/104) | 104 | |
TE Connectivity AMP Connectors 1375963-4 | Gold | 105 ░C | -55 °C | Solder | Through Hole | 15 µin | 0.38 µm | 2.54 mm | 0.1 in | Black | UL94 V-0 | PC/104 Plus | Non-Stackthrough, Unkeyed (PC/104) | 104 | All |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.99 | |
| 21 | $ 25.74 | |||
| 42 | $ 24.33 | |||
| 63 | $ 23.55 | |||
| 105 | $ 22.60 | |||
| 252 | $ 21.06 | |||
Description
General part information
1375963 Series
104 Connector Non-Stackthrough, Unkeyed (PC/104) Through Hole Black PC/104 Plus
