3502A
ActiveRCA (PHONO) AUDIO / VIDEO CONNECTOR, 2 CONTACTS, PLUG, METAL BODY
3502A
ActiveRCA (PHONO) AUDIO / VIDEO CONNECTOR, 2 CONTACTS, PLUG, METAL BODY
Description
General part information
3502A

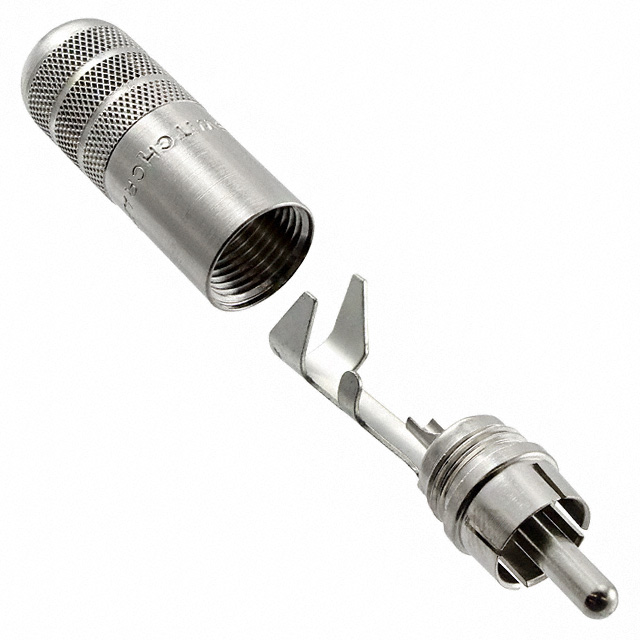

The 3502A is a straight RCA Plug features an easy-to-assemble construction with a handle. The plug features a solid-pin design and large solder terminals that make termination faster and easier. The larger cable clamp and handle will accommodate a variety of cable sizes. The plug is made with the nickel-plated copper alloy pin, sleeve and handle, CRS electro-tin-plated cable clamp and rigid plastic insulator.
Technical Specifications
Parameters and characteristics for this part
| Specification | 3502A |
|---|---|
| Body Color | Silver |
| Body Material | Brass |
| Cable Opening | 0.29 in |
| Connector Type | Phono (RCA) Plug |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Nickel |
| Gender | Male |
| Housing Material | Brass |
| Includes | Connector, Handle |
| Includes Total Count | 2 pcs |
| Industry Recognized Mating Diameter (ID) | 3.2 mm |
| Industry Recognized Mating Diameter (OD) | 9 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Shielding | Shielded |
| Signal Lines | Mono |
| Termination | Solder Cup |
