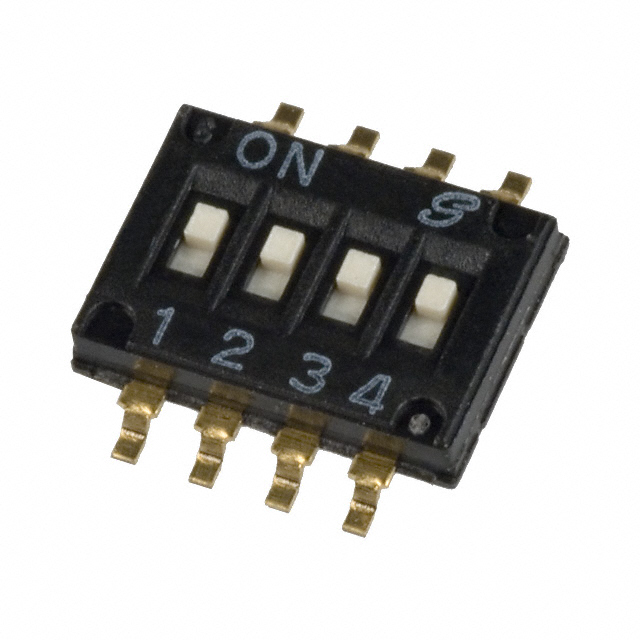

97C04T

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Height Above Board	Height Above Board [z]	Mechanical Life	Actuator Type	Actuator Level	Contact Finish	Voltage Rating	Pitch [x]	Pitch [x]	Mounting Type	Washable	Contact Material	Circuit	Length [x]	Length [x]	Number of Positions	Termination Style	Current Rating (Amps)	Body Material	Operating Temperature [Max]	Operating Temperature [Min]
Grayhill Inc. 97C04T	1.6 mm	0.063 in	1000 Cycles	Slide (Standard)	Flush, Recessed	Gold	24 VDC	0.05 in	1.27 mm	Surface Mount		Copper Alloy	SPST	6.31 mm	0.248 in	4	Gull Wing	25 mA	Nylon, Polyamide (PA)	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	150	$ 3.62

General part information

Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
