SCH74-331
ObsoleteSignal Transformer
FIXED IND 330UH 470MA 1.55OHM SM
SCH74-331
ObsoleteSignal Transformer
FIXED IND 330UH 470MA 1.55OHM SM
Description
General part information
SCH74-331

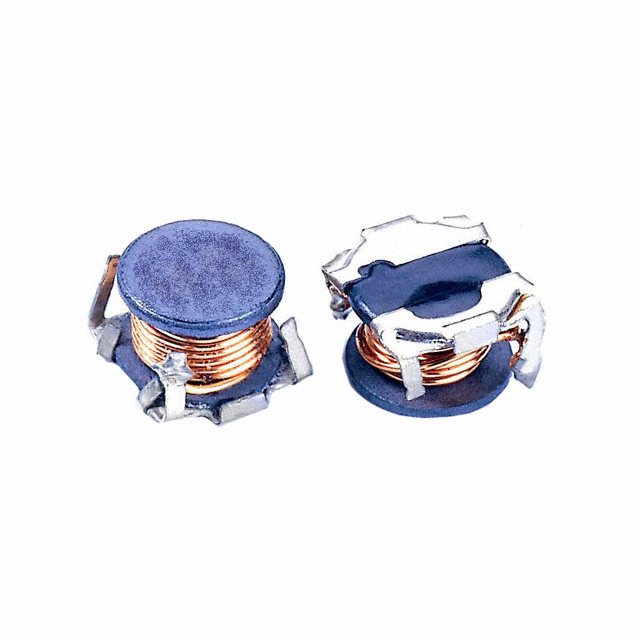

330 µH Unshielded Wirewound Inductor 470 mA 1.55Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCH74-331 |
|---|---|
| Current - Saturation (Isat) | 0.4 mA |
| Current Rating | 470 mA |
| DC Resistance (DCR) (Max) | 1.55 Ohm |
| Height - Seated (Max) | 0.205 in |
| Inductance | 330 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.315 in |
| Size / Dimension Width | 0.287 in |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
