FAA.1S.650.CTA

Active

LEMO

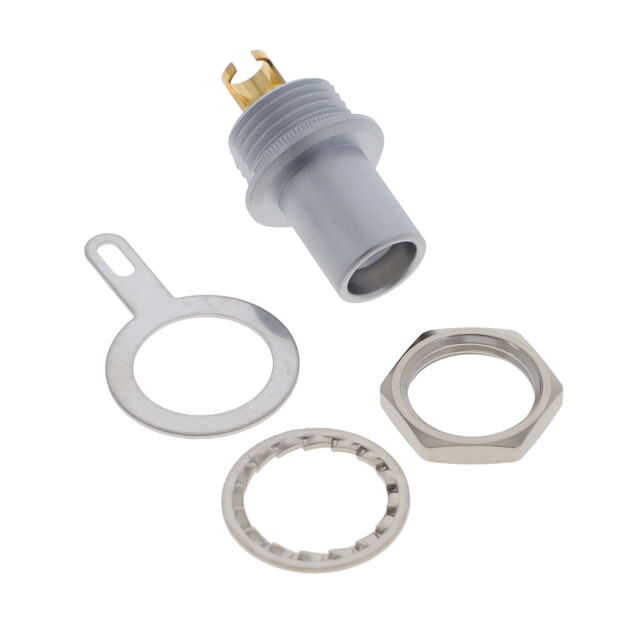

CONN TRIAX PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN TRIAX PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FAA.1S.650.CTA	FAA.1S Series

Body Finish	Chrome	Chrome
Body Material	Brass	Brass
Cable Group	Belden 9222, 178, RG-174	Belden 9222, 178, RG-174, 174A, 188A, 196A, 316B, 178B, RG-122, 174
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Color	-	Silver
Connector Style	Triaxial	Triaxial, Coaxial
Connector Type	Male Pin, Plug	Male Pins, Plug, Female Sockets, Male Pin
Contact Finish - Mating	-	Gold
Contact Material	-	Bronze, Brass
Contact Termination	Solder Cup	Solder Cup
Current Rating (Amps)	-	7 A
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Insert Material	-	Polyetheretherketone (PEEK)
Material Flammability Rating	-	UL94 V-0
Mating Cycles	1000	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	1	1
Number of Positions	-	6
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	-	Keyed
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	306
Shield Termination	Solder	Solder
Shielding	-	Shielded

CONN CIRC PLUG 6P GOLD SLDR CUP

Part	Shielding	Insert Material	Mounting Feature	Connector Type	Orientation	Ingress Protection	Contact Material	Shell Material	Number of Positions	Fastening Type	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Mating	Shell Size - Insert	Color	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Number of Ports	Body Finish	Shield Termination	Impedance	Contact Termination	Includes	Body Material	Dielectric Material	Housing Color	Center Contact Plating	Cable Group	Mating Cycles	Center Contact Material	Connector Style
LEMO FAA.1S.306.CLAZ	Shielded	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	Female Sockets, Male Pins, Plug	Keyed	IP50	Brass, Bronze	Brass	6	Push-Pull	7 A	UL94 V-0	Gold	306	Silver	Chrome	-55 °C	250 °C	Metal
LEMO FAA.1S.650.CTA			Bulkhead - Rear Side Nut	Male Pin, Plug		IP50				Push-Pull							-55 °C	250 °C		1	Chrome	Solder	50 Ohms	Solder Cup	1 Connector, 1 Lockwasher, 1 Nut	Brass	Polytetrafluoroethylene (PTFE)	Silver	Gold	178, Belden 9222, RG-174	1000	Brass	Triaxial
LEMO FAA.1S.250.CTA			Bulkhead - Rear Side Nut	Male Pin, Plug		IP50				Push-Pull							-55 °C	250 °C		1	Chrome	Solder	50 Ohms	Solder Cup	1 Connector, 1 Lockwasher, 1 Nut	Brass	Polytetrafluoroethylene (PTFE)	Silver	Gold	174, 174A, 178B, 188A, 196A, 316B, RG-122	1000	Brass	Coaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Triaxial Connector Plug, Male Pin 50 Ohms Panel Mount Solder Cup
