1217001-1
ActiveTE Connectivity AMP Connectors

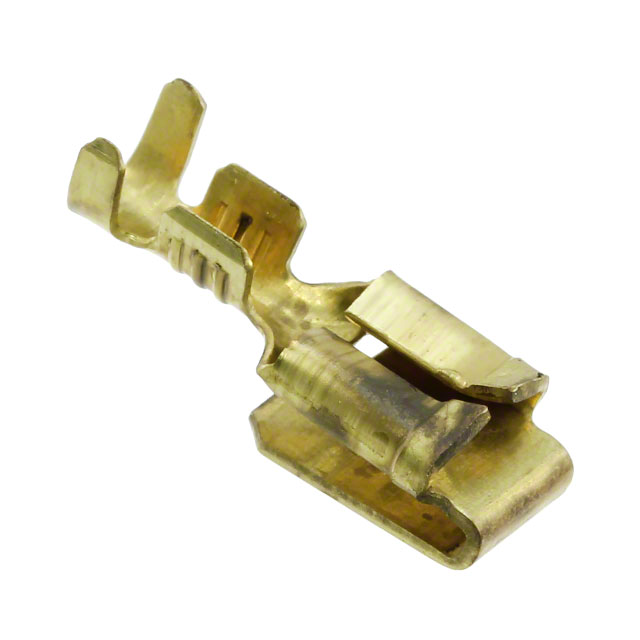

CONN QC RCPT/TAB 16-20AWG 0.187
Deep-Dive with AI
Search across all available documentation for this part.
1217001-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT/TAB 16-20AWG 0.187
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217001-1 |
|---|---|
| Contact Material | Brass |
| Gender | Female, Male |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 0.13 in, 3.3 mm |
| Insulation Diameter [Min] | 2.11 mm, 0.083 " |
| Length - Overall | 15.62 mm |
| Length - Overall | 0.615 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 5.72 mm |
| Tab Length | 0.225 in |
| Tab Thickness | 0.51 mm, 0.032 ", 0.81 mm, 0.02 " |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Stacked |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1217001 Series
CONN QC RCPT/TAB 16-20AWG 0.187
| Part | Termination | Tab Thickness | Contact Material | Insulation Diameter [Max] | Insulation Diameter [Min] | Terminal Type | Length - Overall | Length - Overall | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Gender | Tab Length | Tab Length | Insulation | Tab Width | Tab Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217001-1 | Crimp | 0.02 ", 0.032 ", 0.51 mm, 0.81 mm | Brass | 0.13 in, 3.3 mm | 0.083 ", 2.11 mm | Stacked | 15.62 mm | 0.615 in | Free Hanging (In-Line) | 16 AWG | 20 AWG | Female, Male | 5.72 mm | 0.225 in | Non-Insulated | 4.75 mm | 0.187 in |
Description
General part information
1217001 Series
0.187" (4.75mm) Quick Connect Female and Male 16-20 AWG Crimp Connector Non-Insulated
Documents
Technical documentation and resources
No documents available
