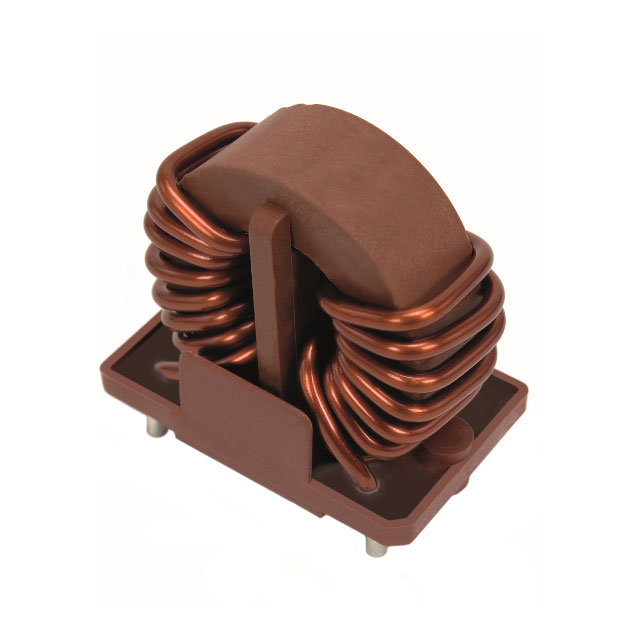

T60405R6128X230
ActiveVACUUMSCHMELZE
CMC 1.48MH 30A 2LN 1.62 KOHM TH
T60405R6128X230
ActiveVACUUMSCHMELZE
CMC 1.48MH 30A 2LN 1.62 KOHM TH
Description
General part information
T60405R6128X230
1.48 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 1.62 kOhms @ 100 kHz 30A DCR
Technical Specifications
Parameters and characteristics for this part
| Specification | T60405R6128X230 |
|---|---|
| Current Rating (Max) | 30 A |
| Height (Max) | 1.862 in |
| Impedance | 1.62 kOhms |
| Inductance | 1.48 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.654 in |
| Size / Dimension Width | 1.063 in |
