Description
General part information

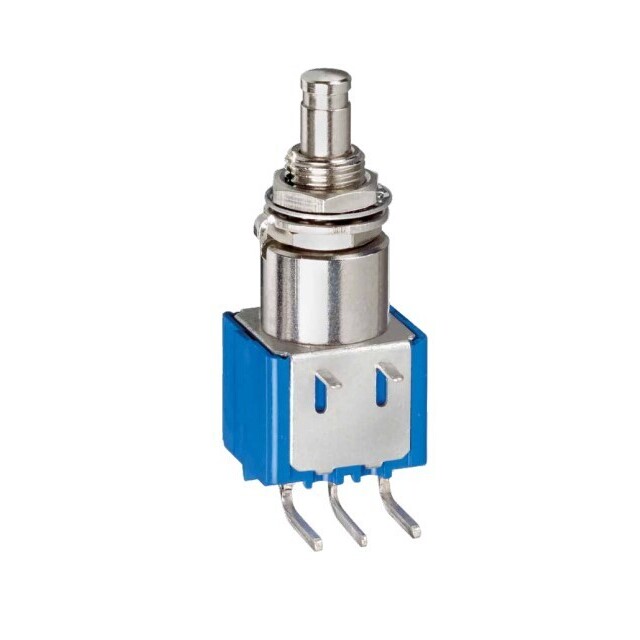

8632AKB6X718UL
PUSHBUTTON SWITCHES SPDT ON-MOM 6A 125VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 8632AKB6X718UL |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating | 4 A, 6 A |
| Features | Voltage Reduction Lighting |
| Ingress Protection | Environment Sealed |
| Mounting Type | Rear, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 12.5 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
