Description
General part information

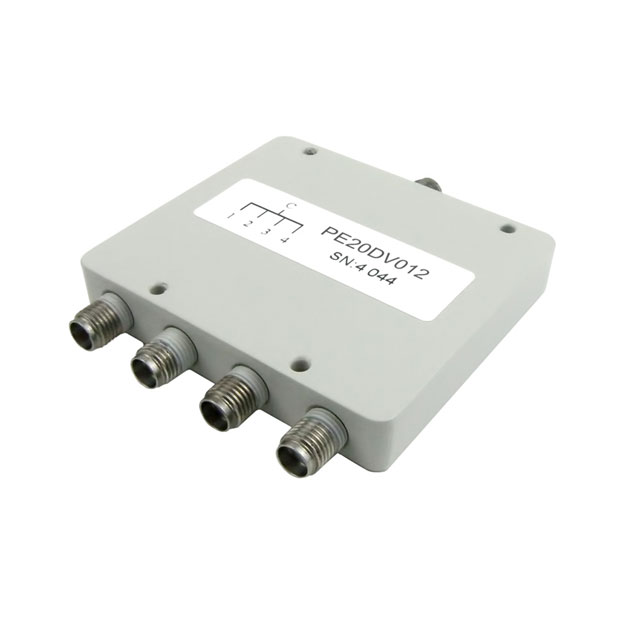

PE20DV012
RF Power Divider 800 MHz ~ 2.5 GHz Isolation (Min) 20dB, 6° Imbalance (Max), 1.3 VSWR (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | PE20DV012 |
|---|---|
| Frequency Range 1 (Max) | 2.5 GHz |
| Frequency Range 1 (Min) | 800 MHz |
| Imbalance (Max) | 6 ° |
| Insertion Loss | 6.7 dB |
| Isolation (Min) | 20 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 0.404 in |
| Size / Dimension Length | 2.22 in |
| Size / Dimension Width | 1.969 in |
| VSWR (Max) | 1.3 |
