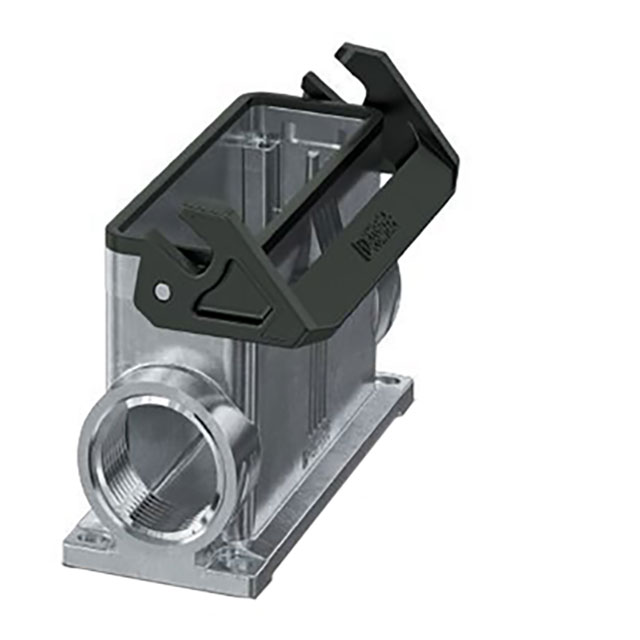

HEAVY DUTY POWER CONNECTORS HC-STA-B24-SHWS 2SSM32
1082592
ActivePhoenix Contact
HEAVY DUTY POWER CONNECTORS HC-STA-B24-SHWS 2SSM32
Description
General part information
1082592
Base - Box Mount Connector Side Entry, Dual M32 B24 IP66/IP67 - Dust Tight, Water Resistant, Waterproof
Technical Specifications
Parameters and characteristics for this part
| Specification | 1082592 |
|---|---|
| Connector Type | Base - Box Mount |
| Features | Feed Through, Salt Water Resistant |
| Housing Color | Gray |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B24 |
| Size / Dimension Height | 3.307 in |
| Size / Dimension Length | 5.669 in |
| Size / Dimension Width | 2.244 in |
| Style | Side Entry, Dual |
| Thread Size | M32 |
