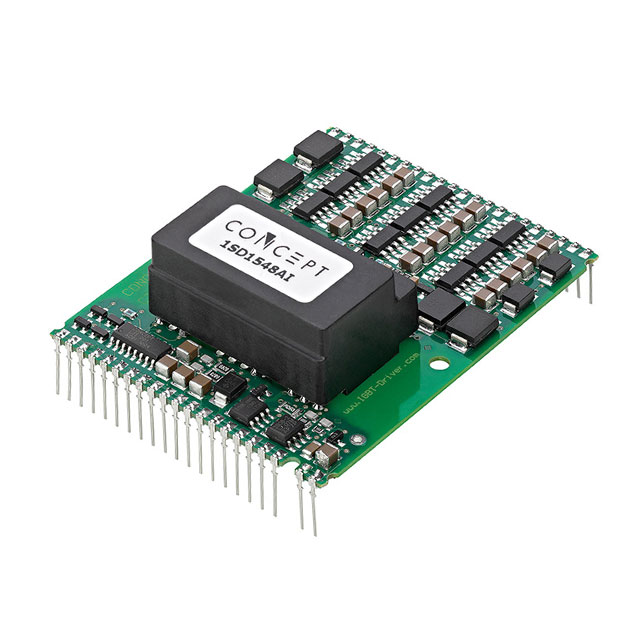

1SD1548AI UL

Active

Power Integrations

IC GATE DRVR HALF-BRIDGE MODULE

Search across all available documentation for this part.

Active

Power Integrations

IC GATE DRVR HALF-BRIDGE MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	1SD1548AI UL

Current - Peak Output (Source, Sink) [custom]	48 A
Current - Peak Output (Source, Sink) [custom]	48 A
Driven Configuration	Half-Bridge
Mounting Type	Through Hole
Number of Drivers	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	Module
Voltage - Supply	15 V

IC GATE DRVR HALF-BRIDGE MODULE

Part	Package / Case	Number of Drivers	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Supply	Mounting Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Driven Configuration
Power Integrations 1SD1548AI UL	Module	1	85 °C	-40 °C	Module	15 V	Through Hole	48 A	48 A	Half-Bridge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	16	$ 131.25

General part information

Half-Bridge Gate Driver IC Module
