EN3P5FRAPCBN

Active

Switchcraft Inc.

CONN RCPT FMALE 5POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

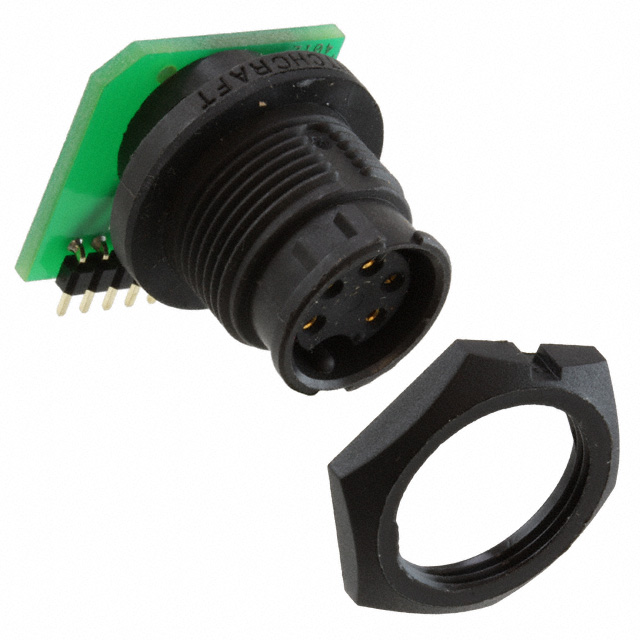

EN3P5FRAPCBN

Active

Switchcraft Inc.

CONN RCPT FMALE 5POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P5FRAPCBN	EN3P5F Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	4 A	4 - 7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Right Angle
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Solder, Crimp, Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

EN3P5F Series

Standard Circular Connector 2P F PANEL TYPE #16

Part	Current Rating (Amps)	Color	Insert Material	Contact Material	Shielding	Contact Finish - Mating	Material Flammability Rating	Connector Type	Orientation	Applications	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Fastening Type	Primary Material	Voltage Rating	Mounting Type	Termination
Switchcraft Inc. EN3P5FX	7.5 A	Black	Elastomer	Copper Alloy	Unshielded	Gold	UL94 V-0	Receptacle, Female Sockets	Keyed	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	65 °C	-40 °C	IP66/IP68	Bayonet Lock	Plastic	250 VAC
Switchcraft Inc. EN3P5FKX	7.5 A	Black	Elastomer	Copper Alloy	Unshielded	Gold	UL94 V-0	Receptacle, Female Sockets	Keyed	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	65 °C	-40 °C	IP66/IP68	Bayonet Lock	Plastic	250 VAC
Switchcraft Inc. EN3P5FPX	7.5 A	Black	Elastomer	Copper Alloy	Unshielded	Gold	UL94 V-0	Receptacle, Female Sockets	Keyed	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	65 °C	-40 °C	IP66/IP68	Bayonet Lock	Plastic	250 VAC	Panel Mount, Through Hole	Solder
Switchcraft Inc. EN3P5FRAPCX	4 A	Black	Elastomer	Copper Alloy	Unshielded	Gold	UL94 V-0	Receptacle, Female Sockets	Keyed	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	65 °C	-40 °C	IP66/IP68	Bayonet Lock	Plastic	250 VAC	Panel Mount, Right Angle, Through Hole	Solder
Switchcraft Inc. EN3P5FCX	7.5 A	Black	Elastomer	Copper Alloy	Unshielded	Gold	UL94 V-0	Receptacle, Female Sockets	Keyed	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	65 °C	-40 °C	IP66/IP68	Bayonet Lock	Plastic	250 VAC		Crimp
Switchcraft Inc. EN3P5FRAPCBN	4 A	Black	Elastomer	Copper Alloy	Unshielded	Gold	UL94 V-0	Receptacle, Female Sockets	Keyed	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	65 °C	-40 °C	IP66/IP68	Bayonet Lock	Plastic	250 VAC	Panel Mount, Right Angle, Through Hole	Circuit Board, Solder
Switchcraft Inc. EN3P5FRAPCBW	4 A	Black	Elastomer	Copper Alloy	Unshielded	Gold	UL94 V-0	Receptacle, Female Sockets	Keyed	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	65 °C	-40 °C	IP66/IP68	Bayonet Lock	Plastic	250 VAC	Panel Mount, Right Angle, Through Hole	Circuit Board, Solder
