Description
General part information

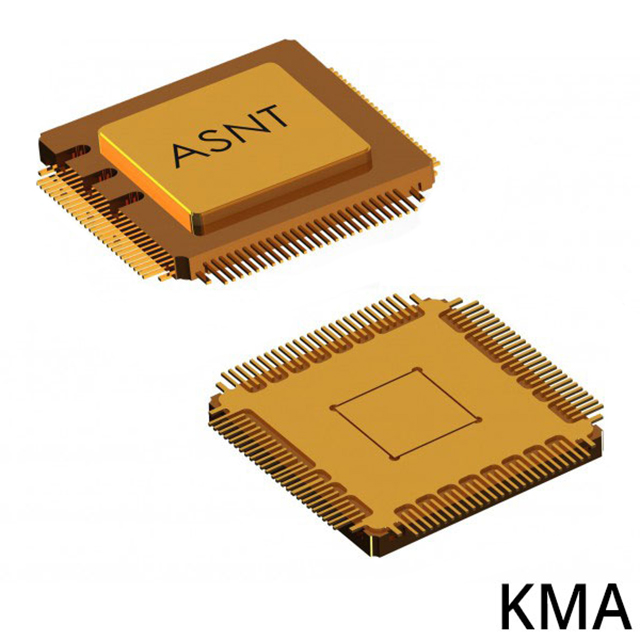

ASNT7122-KMA
4 Bit Analog to Digital Converter 1 Input 1 100-CQFP (13x13)
Technical Specifications
Parameters and characteristics for this part
| Specification | ASNT7122-KMA |
|---|---|
| Data Interface | LVDS - Parallel |
| Input Type | Single Ended |
| Mounting Type | Surface Mount |
| Number of A/D Converters | 1 count |
| Number of Bits | 4 bits |
| Number of Inputs | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 100-CFlatPack |
| Package Length | 13 mm |
| Package Name | 100-CQFP |
| Package Width | 13 mm |
| Ratio - ADC | 1 |
| Ratio - S/H | 0 |
| Reference Type | External |
| Sampling Rate (Per Second) | 15 GHz |
| Voltage - Supply, Analog (Max) | 3.6 V |
| Voltage - Supply, Analog (Min) | 3.4 V |
| Voltage - Supply, Digital (Max) | 3.6 V |
| Voltage - Supply, Digital (Min) | 3.4 V |
