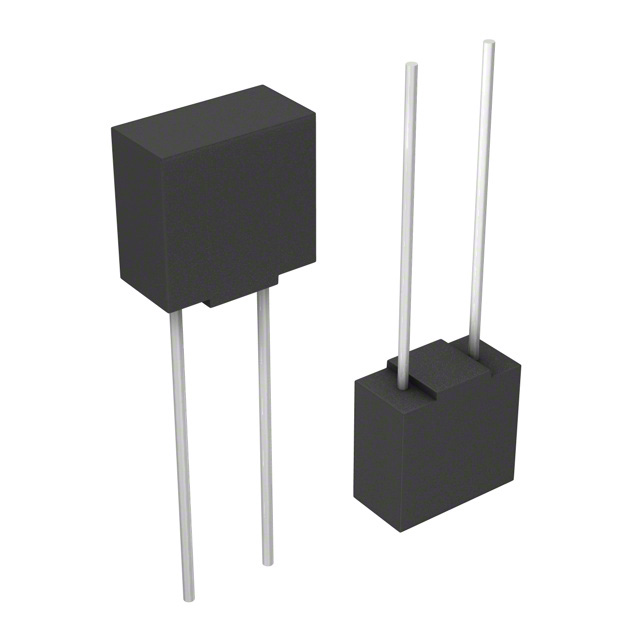

SS-5F-800MA-BK
ActiveEaton - Electronics Division
FUSE BRD MNT 800MA 250VAC RADIAL
SS-5F-800MA-BK
ActiveEaton - Electronics Division
FUSE BRD MNT 800MA 250VAC RADIAL
Description
General part information
SS-5F-800MA-BK
800 mA 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-5F-800MA-BK |
|---|---|
| Approval Agency | cULus |
| Breaking Capacity | 50 A |
| Current Rating | 800 mA |
| DC Cold Resistance | 0.225 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 1.2437 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Box |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.329 in |
| Size / Dimension Length | 0.335 in |
| Size / Dimension Width | 0.169 in |
| Voltage Rating - AC | 250 V |
