FMCN1824
ObsoleteFairview Microwave
CONN PLUG CRIMP/CRIMP 1.0/2.3
FMCN1824
ObsoleteFairview Microwave
CONN PLUG CRIMP/CRIMP 1.0/2.3
Description
General part information
FMCN1824

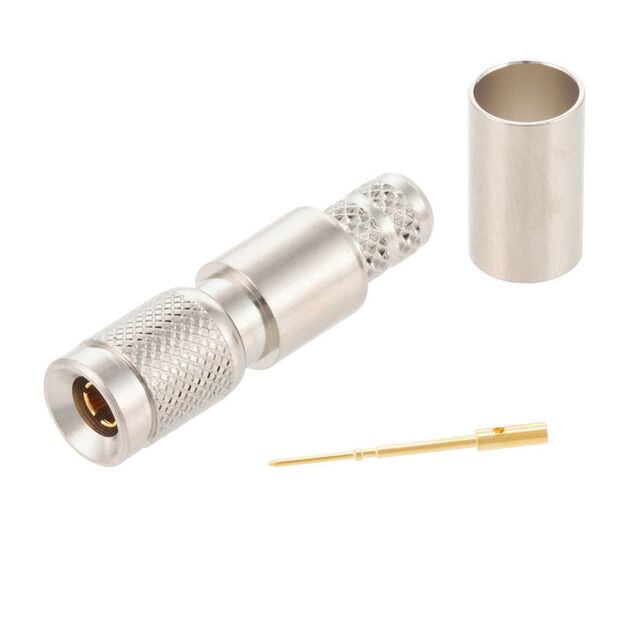

1.0/2.3 Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1824 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-59 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | 1.0/2.3 |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull |
| Frequency - Max | 3 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
