10163479-14840T1LF
ActiveAmphenol ICC (FCI)
400POS 0.635MM 8.40MM COM-HPC PL
10163479-14840T1LF
ActiveAmphenol ICC (FCI)
400POS 0.635MM 8.40MM COM-HPC PL
Description
General part information
10163479-14840T1LF

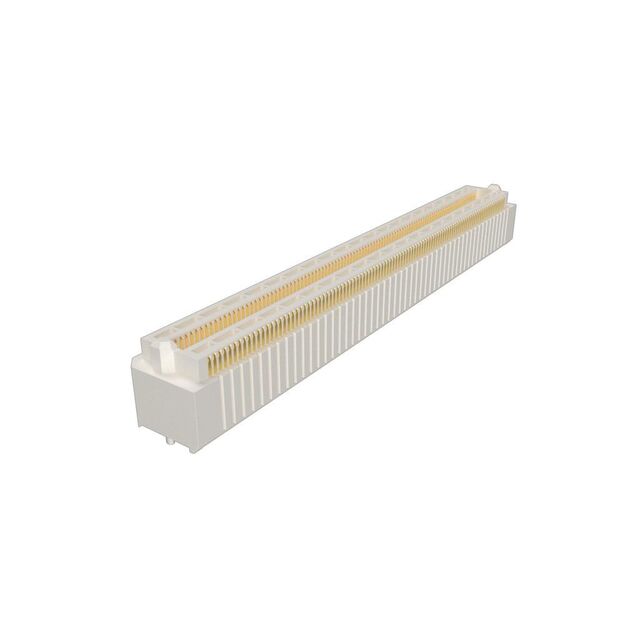

400 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | 10163479-14840T1LF |
|---|---|
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Features | Board Guide, Pick and Place |
| Height Above Board | 0.358 in |
| Mated Stacking Height | 10 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 400 |
| Number of Rows | 2 |
| Pitch | 0.025 in |
