IPRF-HB-P01P0N01-AT-R

Active

Sure-Seal Legacy

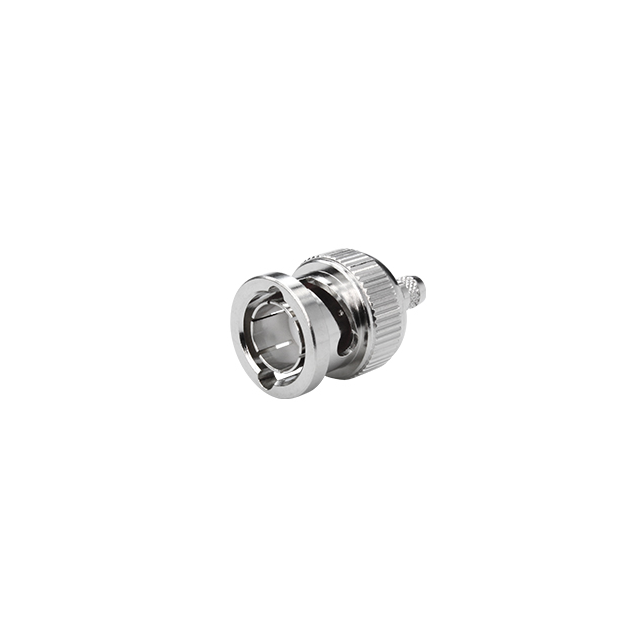

12G-SDI BNC CRIMP PLUG

Search across all available documentation for this part.

Active

Sure-Seal Legacy

12G-SDI BNC CRIMP PLUG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IPRF-HB-P01P0N01-AT-R	IPRF Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	Belden 1855ENH	Belden 1855ENH, 4855R, Belden 1855A, UHD 0.6/2.6
Center Contact Material	Brass	Brass, Beryllium Copper
Center Contact Plating	Nickel	Nickel, Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	12 GHz	12 GHz
Housing Color	Silver	Silver, Gold
Impedance	75 Ohms	75 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

12G-SDI BNC CRIMP PLUG

Part	Connector Type	Voltage Rating	Body Finish	Center Contact Material	Fastening Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Frequency - Max [Max]	Shield Termination	Ingress Protection	Body Material	Center Contact Plating	Mounting Type	Connector Style	Contact Termination	Housing Color	Impedance	Cable Group
Sure-Seal Legacy IPRF-HB-P01P0N01-AT-R	Male Pin, Plug	500 V	Nickel	Brass	Bayonet Lock	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	1	12 GHz	Crimp	IP68 - Dust Tight, Waterproof	Brass	Nickel	Free Hanging (In-Line)	BNC	Crimp	Silver	75 Ohms	Belden 1855ENH
Sure-Seal Legacy IPRF-UB-P01P0N01-AT-R	Male Pin, Plug	500 V	Nickel	Beryllium Copper	Bayonet Lock	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	1	12 GHz	Crimp	IP68 - Dust Tight, Waterproof	Brass	Gold	Free Hanging (In-Line)	BNC	Crimp	Gold	75 Ohms	4855R, Belden 1855A, UHD 0.6/2.6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.69

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
