ZB4BW7A1724
ActiveSCHNEIDER ELECTRIC
SWITCH ACTUATOR, SCHNIDER XB4 SERIES PUSH BUTTON SWITCHES
ZB4BW7A1724
ActiveSCHNEIDER ELECTRIC
SWITCH ACTUATOR, SCHNIDER XB4 SERIES PUSH BUTTON SWITCHES
Description
General part information
ZB4BW7A1724

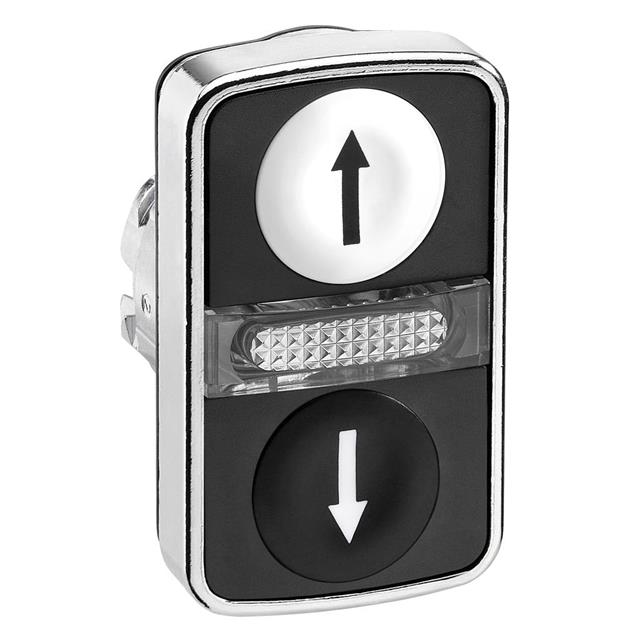

Configurable Switch Body Pushbutton, Rectangular (Dual) Illuminated
Technical Specifications
Parameters and characteristics for this part
| Specification | ZB4BW7A1724 |
|---|---|
| Actuator Type | Pushbutton, Rectangular (Dual) |
| Compatible Series | Harmony XB5, Schneider |
| Illumination | Illuminated |
| Panel Cutout Dimension | 22 mm |
| Panel Cutout Shape | Round |
| Requires | Illumination Source, Contact Block(s) |
| Type | Momentary |
