FP1107R1-R07-R
ActiveEaton - Electronics Division

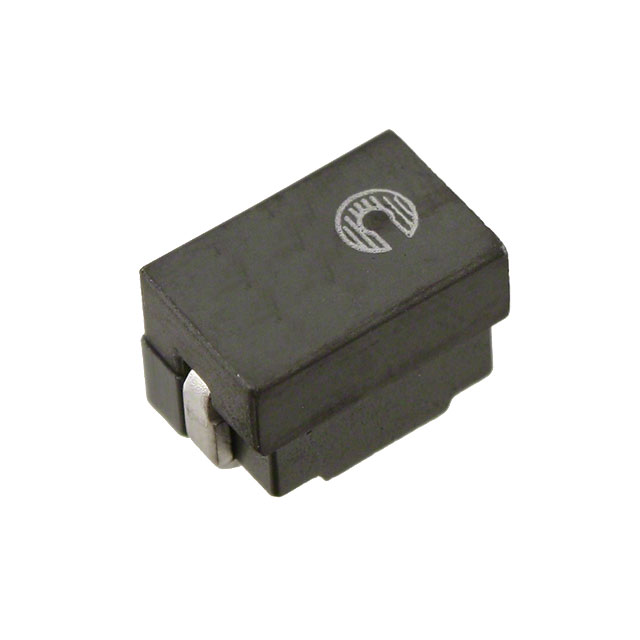

FIXED IND 70NH 55A 0.29 MOHM SMD
FP1107R1-R07-R
ActiveEaton - Electronics Division
FIXED IND 70NH 55A 0.29 MOHM SMD
Description
General part information
FP1107R1-R07-R
70 nH Unshielded Drum Core, Wirewound Inductor 55 A 0.29mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | FP1107R1-R07-R |
|---|---|
| Current - Saturation (Isat) | 140 A |
| Current Rating | 55 A |
| DC Resistance (DCR) | 0.29 mOhm |
| Height - Seated (Max) | 0.295 in |
| Inductance | 70 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.433 in |
| Size / Dimension Width | 0.283 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
