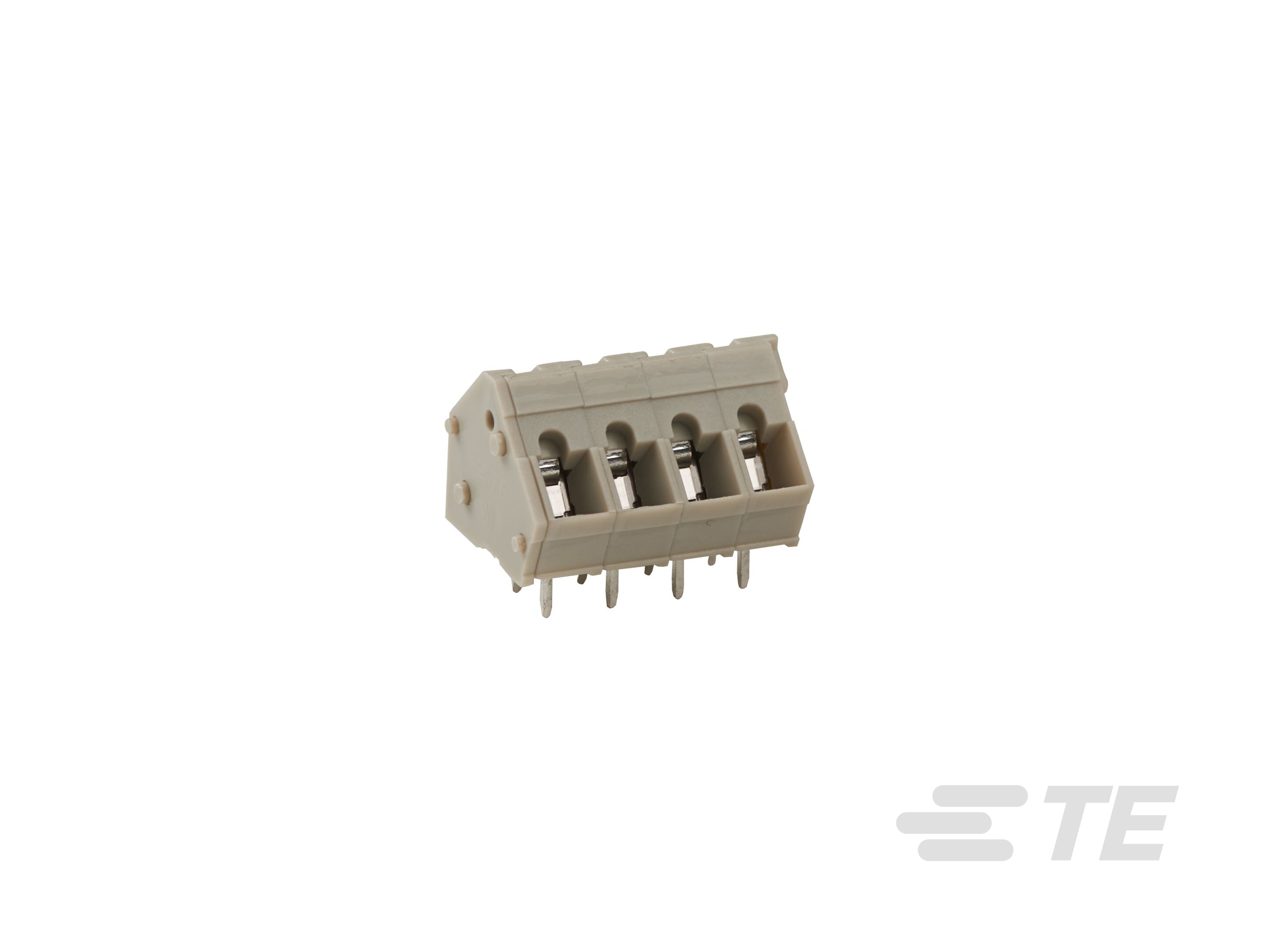

Specification	2834078-2

Contact Material	Brass
Current	16 A
Features	Interlocking (Side)
Housing Material	Nylon 6/6, Polyamide, PA66
Mating Orientation (Angle)	45 °
Mating Orientation (Angle) (Alternate)	135 °
Mating Orientation (Description)	Angle with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Plating	Tin Plated
Positions Per Level	3
Voltage	300 V
Wire Gauge (AWG) (Max)	28 AWG
Wire Gauge (AWG) (Min)	14 AWG
Wire Termination	Spring Cage, Screwless, Tension Clamp

BUCHANAN WireMate Modular Screwless Series

Part	Pitch	Current	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Number of Levels	Wire Termination	Mating Orientation	Mounting Type	Voltage	Positions Per Level	Features	Contact Material	Plating	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)	Mating Orientation (Angle)	Mating Orientation (Description)	Mating Orientation (Angle) (Alternate)	Clamp Material - Plating
TE Connectivity AMP Connectors 1-2834011-4	0.138 in	6 A	14 AWG	20.5 AWG	Green	1	Leg Spring Push-In Spring Screwless	Vertical with Board	Kinked Pin Through Hole	300 V	4
TE Connectivity AMP Connectors 2834088-2	0.15 in	8 A	16 AWG	20.5 AWG		1	Leg Spring Push-In Spring Screwless	Horizontal with Board	Kinked Pin Through Hole	300 V	3	Interlocking (Side)
TE Connectivity AMP Connectors 1-2834014-6	0.197 in	10 A	16 AWG	20.5 AWG	Green	1	Leg Spring Push-In Spring Screwless	Horizontal Vertical with Board	Kinked Pin Through Hole	300 V	6
TE Connectivity AMP Connectors 1-2834019-3	0.138 in	6 A	16 AWG	20.5 AWG	Green	1	Screwless	Horizontal with Board	Through Hole	300 V	3
TE Connectivity AMP Connectors 2834090-1	5.08 mm	10 A	14 AWG	20.5 AWG		1	Leg Spring Push-In Spring Screwless	Horizontal with Board	Kinked Pin Through Hole	300 V	2	Interlocking (Side)
TE Connectivity AMP Connectors 2834084-1	0.098 in	4 A	19.5 AWG	28 AWG	Gray	1	Screwless Spring Cage Tension Clamp		Through Hole	150 V	2	Interlocking (Side)	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C	45 °	Angle with Board	135 °
TE Connectivity AMP Connectors 1-2834015-3	0.1 in	6 A	19.5 AWG	26 AWG	Green	1	Screwless Spring Cage Tension Clamp	Vertical with Board	Through Hole	150 V	3		Copper Alloy	Tin Plated	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C				Steel Stainless
TE Connectivity AMP Connectors 1-2834011-5	0.138 in	6 A	14 AWG	20.5 AWG	Green	1	Leg Spring Push-In Spring Screwless	Vertical with Board	Kinked Pin Through Hole	300 V	5
TE Connectivity AMP Connectors 1-2834021-4	0.098 in	5 A	19.5 AWG	26 AWG	Green	1	Push Button Clamp Screwless	Vertical with Board	Kinked Pin Through Hole	300 V	4		Copper Alloy	Tin Plated	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C
TE Connectivity AMP Connectors 2834082-2	0.197 in	20 A	12 AWG	28 AWG	Gray	1	Screwless Spring Cage Tension Clamp	Horizontal with Board	Through Hole	300 V	3	Interlocking (Side) Lever Actuated	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C
