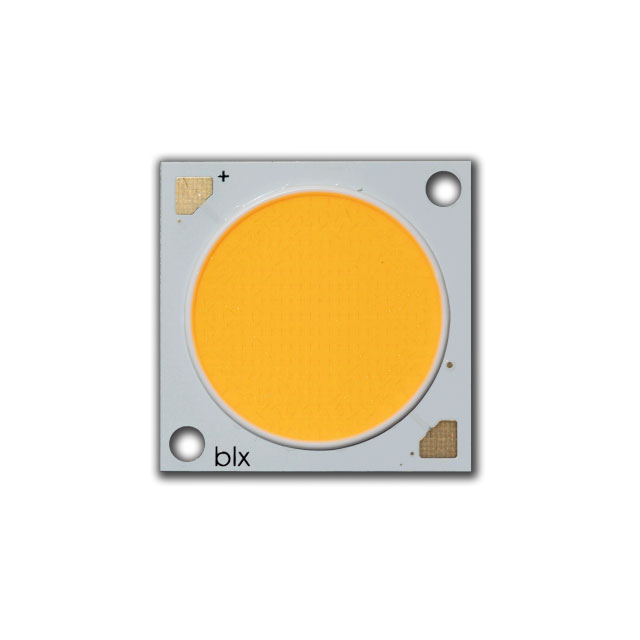

BXRE-65E6501-C-83

Active

BRIDGELUX

LED COB V22 CL WHT SQUARE 6500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-65E6501-C-83

Active

BRIDGELUX

LED COB V22 CL WHT SQUARE 6500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 14.89
		10	$ 11.30

Description

General part information

BXRE-65 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 V22 Array White, Cool Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRE-65E6501-C-83	BXRE-65 Series

CCT (K)	6500 K	6500 K
Color	Cool, White	Cool, White
Configuration	Square	Square
CRI (Color Rendering Index)	80	70 - 98
Current - Max [Max]	3.5 A	1 - 900 A
Current - Test	1.2 A	1.05 - 900 A
Features	-	Dimming
Height [z]	1.65 mm	1.65 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	23.3 mm	6.3 - 23.3 mm
Lumens/Watt @ Current - Test	184 lm/W	119 - 184 lm/W
Luminous Flux @ Current/Temperature	11206 lm	469 - 11722 lm
Size / Dimension [x]	28 mm	12.5 - 28 mm
Size / Dimension [y]	28 mm	12.5 - 28 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	50.7 V	17.2 - 50.7 V

BXRE-65 Series

LED COB V22 CL WHT SQUARE 6500K

Part	Temperature - Test	Configuration	Height [z]	Light Emitting Surface (LES) [diameter]	Type	Current - Max [Max]	CRI (Color Rendering Index)	CCT (K)	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Luminous Flux @ Current/Temperature	Color	Lens Type	Voltage - Forward (Vf) (Typ)	Current - Test
BRIDGELUX BXRE-65E6501-B-73	85 °C	Square	1.7 mm	22.6 mm	Chip On Board (COB)	2.34 A	80	6500 K	159 lm/W	28 mm	28 mm	120 °	9439 lm	Cool, White	Flat	50.7 V
BRIDGELUX BXRE-65C6501-C-74	85 °C	Square	1.7 mm	22.6 mm	Chip On Board (COB)	2.88 A	70	6500 K	161 lm/W	28 mm	28 mm	120 °	11722 lm	Cool, White	Flat	50.7 V	1.44 A
BRIDGELUX BXRE-65S0801-D-74		Square	1.7 mm	9 mm	Chip On Board (COB)	700 mA	98	6500 K	128 lm/W	12.5 mm	12.5 mm	120 °	771 lm	Cool, White	Flat	17.2 V	350 mA
BRIDGELUX BXRE-65E4001-C-83		Square	1.65 mm	19.6 mm	Chip On Board (COB)	3 A	80	6500 K	182 lm/W	24 mm	24 mm	120 °	6475 lm	Cool, White	Flat	33.9 V	1.05 A
BRIDGELUX BXRE-65C1001-C-74	85 °C	Square	1.7 mm	10.2 mm	Chip On Board (COB)	720 mA	70	6500 K	154 lm/W				1887 lm	Cool, White	Flat	34 V	360 mA
BRIDGELUX BXRE-65C1001-B-74	85 °C	Square	1.7 mm	10.2 mm	Chip On Board (COB)	540 mA	70	6500 K	154 lm/W				1416 lm	Cool, White	Flat	34 V	270 mA
BRIDGELUX BXRE-65E4001-B-73	85 °C	Square	1.7 mm	19.2 mm	Chip On Board (COB)	1.8 A	80	6500 K	158 lm/W	24 mm	24 mm	120 °	4833 lm	Cool, White	Flat	34 V	900 mA
BRIDGELUX BXRE-65E2001-C-73	85 °C	Square	1.7 mm	14 mm	Chip On Board (COB)	1.26 A	80	6500 K	158 lm/W	19 mm	19 mm	120 °	3383 lm	Cool, White	Flat	33.9 V	630 mA
BRIDGELUX BXRE-65C1001-B-73	85 °C	Square	1.7 mm	10.2 mm	Chip On Board (COB)	540 mA	70	6500 K	155 lm/W			120 °	1416 lm	Cool, White	Flat	33.8 V	270 mA
BRIDGELUX BXRE-65C4001-B-73	85 °C	Square	1.7 mm	19.2 mm	Chip On Board (COB)	1.8 A	70	6500 K	159 lm/W	24 mm	24 mm	120 °	4876 lm	Cool, White	Flat	34 V	900 mA
