6XV18708AH30

Active

Siemens

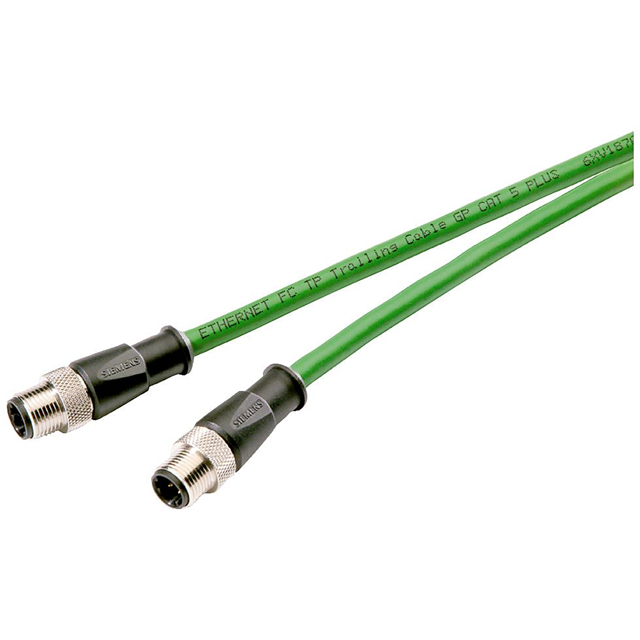

CBL CIRC 4POS MALE TO MALE 9.84'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6XV18708AH30

Active

Siemens

CBL CIRC 4POS MALE TO MALE 9.84'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 61.38
LCSC	Piece	1	$ 56.76

Description

General part information

6XV18708 Series

Circular Cable Assembly Shielded 9.84' (3.00m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6XV18708AH30	6XV18708 Series

1st Connector Gender	Male Pins	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	4	4
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation	D	D
1st Connector Shell Size - Insert	M12	M12
1st Connector Type	Receptacle	Receptacle, Right Angle, Receptacle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Connector Number of Positions	4	4
2nd Connector Number of Positions Loaded	All	All
2nd Connector Orientation	D	D
2nd Connector Shell Size - Insert	M12	M12
2nd Connector Type	Receptacle	Wire Leads, Receptacle
Assembly Configuration	Standard	Standard
Cable Material	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)
Cable Type	Round	Round
Color	Green	Green
Ingress Protection	-	IP67, IP65
Length	-	4.92 '
Length	-	1.5 m
Length [x]	9.84 ft	1.64 - 49.2 ft
Length [x]	3 m	1 - 500 mm
Shielding	Shielded	Shielded, Unshielded
Usage	-	Industrial Environments

6XV18708 Series

CBL CIRC 4POS MALE 1.64'

Part	2nd Connector Type	1st Connector Type	Cable Type	1st Connector Shell Size - Insert	Length [x]	Length [x]	Color	1st Connector Mounting Type	Shielding	1st Connector Number of Positions Loaded	1st Connector Gender	Cable Material	Assembly Configuration	1st Connector Number of Positions	2nd Connector Mounting Type	2nd Connector Orientation	Usage	2nd Connector Number of Positions Loaded	Ingress Protection	1st Connector Orientation	2nd Connector Number of Positions	2nd Connector Shell Size - Insert	Length	Length
Siemens 6XV18708GE50	Wire Leads	Receptacle, Right Angle	Round	M12	1.64 ft	500 mm	Green	Free Hanging (In-Line)	Shielded	All	Male Pins	Polyvinyl Chloride (PVC)	Standard	4
Siemens 6XV18708AE30	Receptacle	Receptacle	Round	M12			Green	Free Hanging (In-Line)	Unshielded	All	Male Pins	Polyvinyl Chloride (PVC)	Standard	4	Free Hanging (In-Line)	D	Industrial Environments	All	IP65, IP67	D	4	M12
Siemens 6XV18708GE30	Wire Leads	Receptacle, Right Angle	Round	M12			Green	Free Hanging (In-Line)	Shielded	All	Male Pins	Polyvinyl Chloride (PVC)	Standard	4
Siemens 6XV18708AH15	Receptacle	Receptacle	Round	M12			Green	Free Hanging (In-Line)	Shielded	All	Male Pins	Polyvinyl Chloride (PVC)	Standard	4	Free Hanging (In-Line)	D		All		D	4	M12	4.92 '	1.5 m
Siemens 6XV18708GH10	Wire Leads	Receptacle, Right Angle	Round	M12	3.28 ft	1 m	Green	Free Hanging (In-Line)	Shielded	All	Male Pins	Polyvinyl Chloride (PVC)	Standard	4
Siemens 6XV18708GH20	Wire Leads	Receptacle, Right Angle	Round	M12	6.56 ft	2 m	Green	Free Hanging (In-Line)	Shielded	All	Male Pins	Polyvinyl Chloride (PVC)	Standard	4
Siemens 6XV18708AN20	Receptacle	Receptacle	Round	M12			Green	Free Hanging (In-Line)	Shielded	All	Male Pins	Polyvinyl Chloride (PVC)	Standard	4	Free Hanging (In-Line)	D		All		D	4	M12
Siemens 6XV18708AH20	Receptacle	Receptacle	Round	M12	6.56 ft	2 m	Green	Free Hanging (In-Line)	Shielded	All	Male Pins	Polyvinyl Chloride (PVC)	Standard	4	Free Hanging (In-Line)	D		All		D	4	M12
Siemens 6XV18708AE50	Receptacle	Receptacle	Round	M12	1.64 ft	500 mm	Green	Free Hanging (In-Line)	Shielded	All	Male Pins	Polyvinyl Chloride (PVC)	Standard	4	Free Hanging (In-Line)	D		All		D	4	M12
Siemens 6XV18708GH30	Wire Leads	Receptacle, Right Angle	Round	M12	9.84 ft	3 m	Green	Free Hanging (In-Line)	Shielded	All	Male Pins	Polyvinyl Chloride (PVC)	Standard	4
