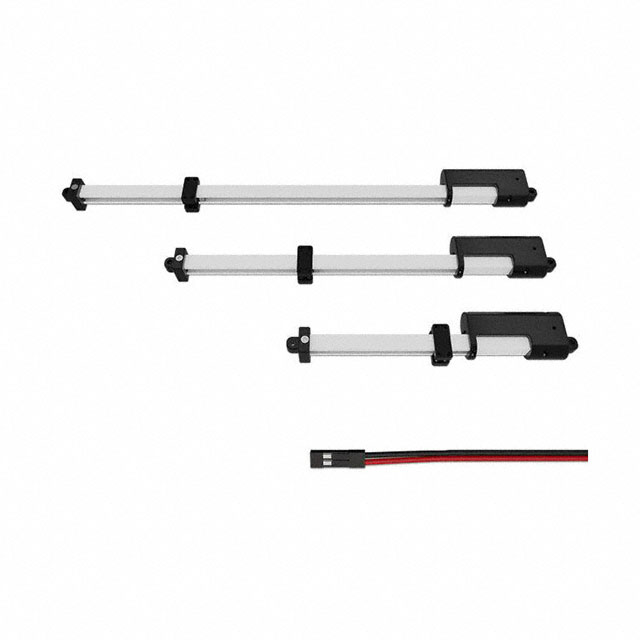

T16-300-256-12-S

Active

Actuonix Motion Devices Inc

T16-S MICRO LINEAR ACTUATOR

Search across all available documentation for this part.

Active

Actuonix Motion Devices Inc

T16-S MICRO LINEAR ACTUATOR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T16-300-256-12-S	T16-300 Series

Accuracy	1.2 mm	1.2 mm
Construction	Ball Screw	Ball Screw
Duty Cycle	20 %	20 %
Features	Limit Switches	Limit Switches
Feedback Type	-	Potentiometer
Gear Reduction Ratio	256	22 - 256
Load Force (Dynamic)	67.44 lbf	11.24 - 67.44 lbf
Load Force (Dynamic)	300 N	50 - 300 N
Load Force (Static)	122.4 lbf	122.4 lbf
Load Force (Static)	500 N	500 N
Motor Type	Brushed	Brushed
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Speed	-	0.71 - 1.81 in/s
Speed	-	18 - 46 mm/s
Stroke Length [custom]	300 mm	300 mm
Stroke Length [custom]	11.811 in	11.811 in
Type	Linear Actuator	Linear Actuator
Voltage - Rated	12 VDC	12 VDC

T16-P MICRO LINEAR ACTUATOR

Part	Accuracy	Type	Feedback Type	Voltage - Rated	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Load Force (Static)	Load Force (Static)	Duty Cycle	Load Force (Dynamic)	Load Force (Dynamic)	Gear Reduction Ratio	Stroke Length [custom]	Stroke Length [custom]	Motor Type	Construction	Features	Speed	Speed
Actuonix Motion Devices Inc T16-300-256-12-P	1.2 mm	Linear Actuator	Potentiometer	12 VDC	-10 °C	50 °C	122.4 lbf	500 N	20 %	67.44 lbf	300 N	256	300 mm	11.811 in	Brushed	Ball Screw
Actuonix Motion Devices Inc T16-300-64-12-S	1.2 mm	Linear Actuator		12 VDC	-10 °C	50 °C	122.4 lbf	500 N	20 %	20.23 lbf	90 N	64	300 mm	11.811 in	Brushed	Ball Screw	Limit Switches	0.71 in/s	18 mm/s
Actuonix Motion Devices Inc T16-300-22-12-S	1.2 mm	Linear Actuator		12 VDC	-10 °C	50 °C	122.4 lbf	500 N	20 %	11.24 lbf	50 N	22	300 mm	11.811 in	Brushed	Ball Screw	Limit Switches	1.81 in/s	46 mm/s
Actuonix Motion Devices Inc T16-300-64-12-P	1.2 mm	Linear Actuator	Potentiometer	12 VDC	-10 °C	50 °C	122.4 lbf	500 N	20 %	20.23 lbf	90 N	64	300 mm	11.811 in	Brushed	Ball Screw		0.71 in/s	18 mm/s
Actuonix Motion Devices Inc T16-300-256-12-S	1.2 mm	Linear Actuator		12 VDC	-10 °C	50 °C	122.4 lbf	500 N	20 %	67.44 lbf	300 N	256	300 mm	11.811 in	Brushed	Ball Screw	Limit Switches
Actuonix Motion Devices Inc T16-300-22-12-P	1.2 mm	Linear Actuator	Potentiometer	12 VDC	-10 °C	50 °C	122.4 lbf	500 N	20 %	11.24 lbf	50 N	22	300 mm	11.811 in	Brushed	Ball Screw		1.81 in/s	46 mm/s

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 100.00

General part information

T16-S MICRO LINEAR ACTUATOR

Technical documentation and resources
