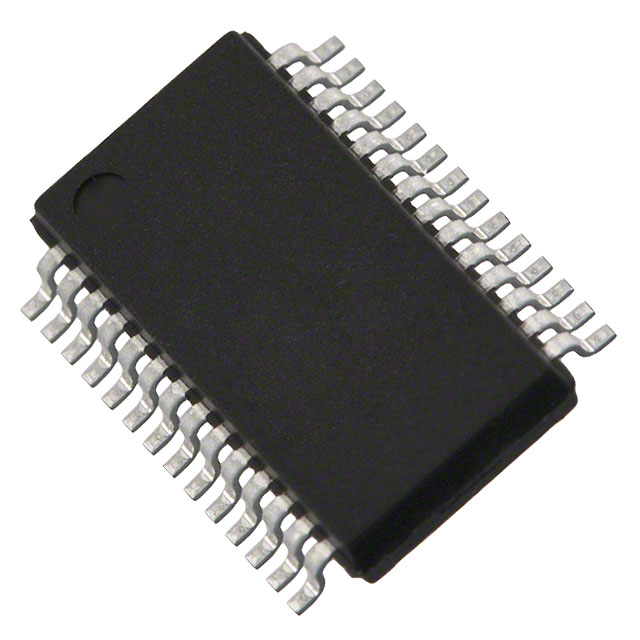

SP211ECA-L/TR

Active

MaxLinear, Inc.

IC TRANSCEIVER FULL 4/4 28SSOP

Search across all available documentation for this part.

Active

MaxLinear, Inc.

IC TRANSCEIVER FULL 4/4 28SSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SP211ECA-L/TR	SP211 Series

Data Rate	230 kbps	230 kbps
Duplex	Full	Full
Mounting Type	Surface Mount	Surface Mount
Number of Drivers/Receivers [custom]	5	5
Number of Drivers/Receivers [custom]	4	4
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Package / Case	28-SSOP	28-SSOP
Package / Case [custom]	0.209 in	0.209 in
Package / Case [custom]	5.3 mm	5.3 mm
Protocol	RS232	RS232
Receiver Hysteresis	500 mV	500 mV
Supplier Device Package	28-SSOP	28-SSOP
Type	Transceiver	Transceiver
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V

IC TRANSCEIVER FULL 4/5 28SSOP

Part	Mounting Type	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Protocol	Receiver Hysteresis	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Supplier Device Package	Package / Case [custom]	Package / Case	Package / Case [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Duplex
MaxLinear, Inc. SP211EEA-L/TR	Surface Mount	5	4	RS232	500 mV	230 kbps	4.5 V	5.5 V	Transceiver	28-SSOP	0.209 in	28-SSOP	5.3 mm	85 °C	-40 °C	Full
MaxLinear, Inc. SP211ECA-L/TR	Surface Mount	5	4	RS232	500 mV	230 kbps	4.5 V	5.5 V	Transceiver	28-SSOP	0.209 in	28-SSOP	5.3 mm	70 °C	0 °C	Full

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4/5 Transceiver Full RS232 28-SSOP
