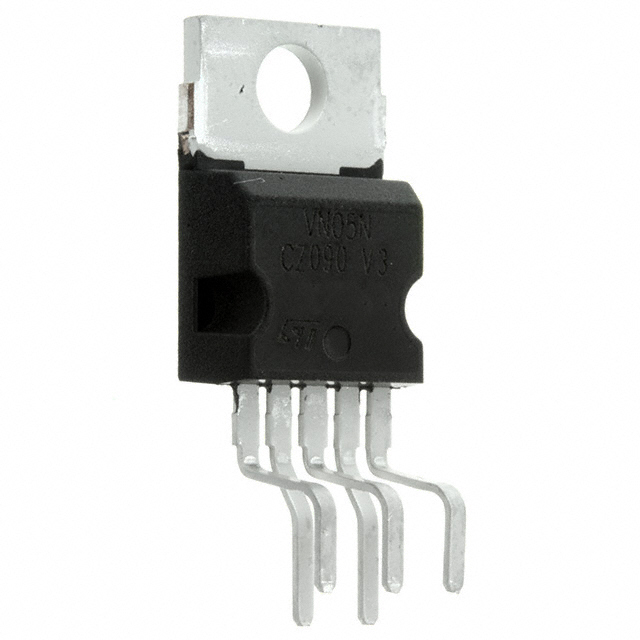

VN820-E
ActiveSTMicroelectronics
IC PWR DRVR N-CH 1:1 5PENTAWATT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VN820-E
ActiveSTMicroelectronics
IC PWR DRVR N-CH 1:1 5PENTAWATT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VN820-E | VN820 Series |
|---|---|---|
| - | - | |
| Fault Protection | Current Limiting (Fixed), Over Voltage, Over Temperature, Open Load Detect | Current Limiting (Fixed), Over Voltage, Over Temperature, Open Load Detect |
| Features | Status Flag, Auto Restart | Status Flag, Auto Restart |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | On/Off | On/Off |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Package / Case | Pentawatt-5 (Vertical, Bent and Staggered Leads) | DPAK (4 Leads + Tab), TO-252-5, TO-252AD, P2PAK (4 Leads + Tab), Pentawatt-5 (Straight Leads, Staggered Depth), Pentawatt-5 (Vertical, Bent and Staggered Leads), Pentawatt-5 (Horizontal, Bent and Staggered Leads), PowerSO-10 Exposed Bottom Pad |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 40 mOhm | 40 mOhm |
| Supplier Device Package | 5-PENTAWATT | PPAK, P2PAK, 5-PENTAWATT, 10-PowerSO |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load [Max] | 36 V | 36 V |
| Voltage - Load [Min] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VN820 Series
IC PWR DRIVER N-CHANNEL 1:1 PPAK
| Part | Features | Fault Protection | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Switch Type | Output Configuration | Interface | Voltage - Supply (Vcc/Vdd) | Voltage - Load [Min] | Voltage - Load [Max] | Mounting Type | Ratio - Input:Output [custom] | Input Type | Output Type | Supplier Device Package | Rds On (Typ) | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VN820PT-E | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | DPAK (4 Leads + Tab), TO-252-5, TO-252AD | 150 °C | -40 °C | General Purpose | High Side | On/Off | 5.5 V | 36 V | Surface Mount | 1:1 | Non-Inverting | N-Channel | PPAK | 40 mOhm | 1 | |
STMicroelectronics VN820-B513TR | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | P2PAK (4 Leads + Tab) | 150 °C | -40 °C | General Purpose | High Side | On/Off | 5.5 V | 36 V | Surface Mount | 1:1 | Non-Inverting | N-Channel | P2PAK | 40 mOhm | 1 | |
STMicroelectronics VN820PTTR-E | ||||||||||||||||||
STMicroelectronics VN820PTTR-E | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | DPAK (4 Leads + Tab), TO-252-5, TO-252AD | 150 °C | -40 °C | General Purpose | High Side | On/Off | 5.5 V | 36 V | Surface Mount | 1:1 | Non-Inverting | N-Channel | PPAK | 40 mOhm | 1 | |
STMicroelectronics VN820-B5 | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | P2PAK (4 Leads + Tab) | 150 °C | -40 °C | General Purpose | High Side | On/Off | 5.5 V | 36 V | Surface Mount | 1:1 | Non-Inverting | N-Channel | P2PAK | 40 mOhm | 1 | |
STMicroelectronics VN820B5-E | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | P2PAK (4 Leads + Tab) | 150 °C | -40 °C | General Purpose | High Side | On/Off | 5.5 V | 36 V | Surface Mount | 1:1 | Non-Inverting | N-Channel | P2PAK | 40 mOhm | 1 | |
STMicroelectronics VN820-12-E | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Pentawatt-5 (Straight Leads, Staggered Depth) | 150 °C | -40 °C | General Purpose | High Side | On/Off | 5.5 V | 36 V | Through Hole | 1:1 | Non-Inverting | N-Channel | 5-PENTAWATT | 40 mOhm | 1 | |
STMicroelectronics VN820-E | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Pentawatt-5 (Vertical, Bent and Staggered Leads) | 150 °C | -40 °C | General Purpose | High Side | On/Off | 5.5 V | 36 V | Through Hole | 1:1 | Non-Inverting | N-Channel | 5-PENTAWATT | 40 mOhm | 1 | |
STMicroelectronics VN820(011Y) | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Pentawatt-5 (Horizontal, Bent and Staggered Leads) | 150 °C | -40 °C | General Purpose | High Side | On/Off | 5.5 V | 36 V | Through Hole | 1:1 | Non-Inverting | N-Channel | 5-PENTAWATT | 40 mOhm | 1 | |
STMicroelectronics VN820PTTR-E | ||||||||||||||||||
STMicroelectronics VN820SP | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | PowerSO-10 Exposed Bottom Pad | 150 °C | -40 °C | General Purpose | High Side | On/Off | 5.5 V | 36 V | Surface Mount | 1:1 | Non-Inverting | N-Channel | 10-PowerSO | 40 mOhm | 1 |
Description
General part information
VN820 Series
Power Switch/Driver 1:1 N-Channel 9A 5-PENTAWATT
Documents
Technical documentation and resources
