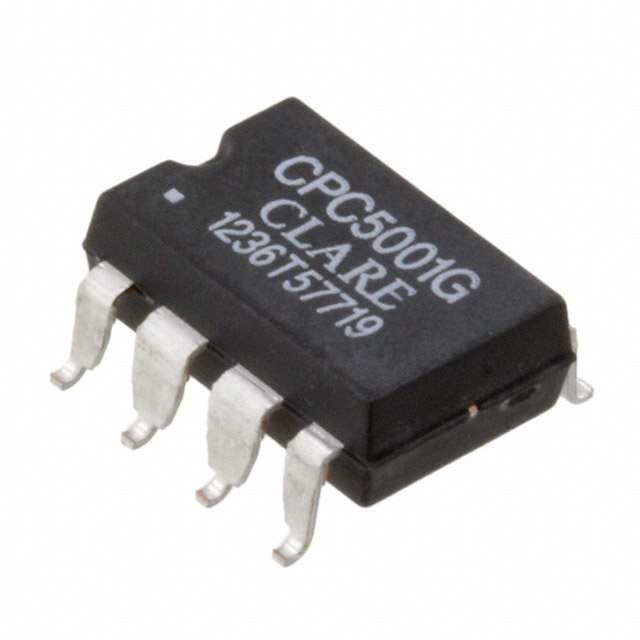

CPC5001GSTR

Active

IXYS Integrated Circuits Division

OPTOISO 3.75KV 2CH OPEN DRN 8SMD

Search across all available documentation for this part.

DocumentsCPC5001

Active

IXYS Integrated Circuits Division

OPTOISO 3.75KV 2CH OPEN DRN 8SMD

DocumentsCPC5001

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPC5001GSTR	CPC5001 Series

Common Mode Transient Immunity (Min) [Max]	7 kV/µs	7 kV/µs
Common Mode Transient Immunity (Min) [Min]	5 kV/µs	5 kV/µs
Data Rate	5 MBd	5 MBd
Input Type	Logic	Logic
Inputs - Side 1/Side 2	1/1	1/1
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Channels [custom]	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Open Drain	Open Drain
Package / Case	-	0.3 in
Package / Case	-	8-DIP
Package / Case	-	7.62 mm
Propagation Delay tpLH / tpHL (Max) [Max]	250 ns, 100 ns	100 - 250 ns
Voltage - Isolation	3750 Vrms	3750 Vrms
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	2.7 V	2.7 V

OPTOISO 3.75KV 2CH OPEN DRN 8DIP

Part	Voltage - Isolation	Common Mode Transient Immunity (Min) [Min]	Common Mode Transient Immunity (Min) [Max]	Input Type	Number of Channels [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Propagation Delay tpLH / tpHL (Max) [Max]	Inputs - Side 1/Side 2	Output Type	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Data Rate
IXYS Integrated Circuits Division CPC5001G	3750 Vrms	5 kV/µs	7 kV/µs	Logic	2	2.7 V	5.5 V	100 ns, 250 ns	1/1	Open Drain	0.3 in	8-DIP	7.62 mm	85 °C	-40 °C	Through Hole	5 MBd
IXYS Integrated Circuits Division CPC5001GSTR	3750 Vrms	5 kV/µs	7 kV/µs	Logic	2	2.7 V	5.5 V	100 ns, 250 ns	1/1	Open Drain				85 °C	-40 °C	Surface Mount	5 MBd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Logic Output Optoisolator 5MBd Open Drain 3750Vrms 2 Channel 5kV/µs, 7kV/µs CMTI
