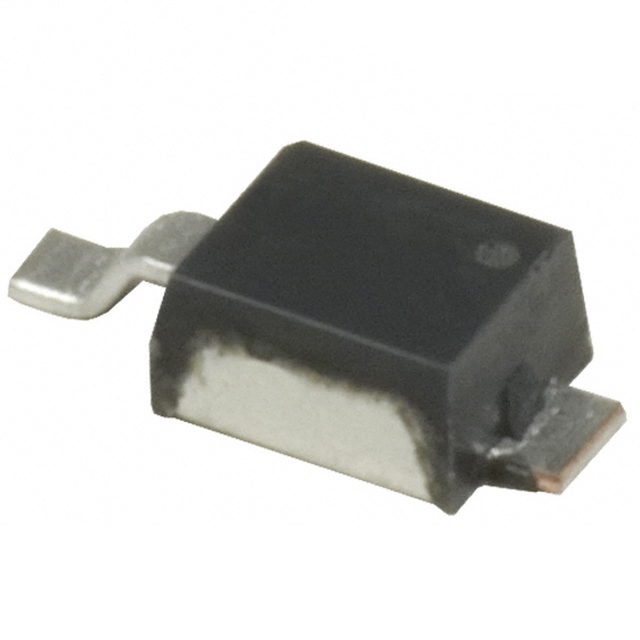

UPS140/TR7
ActiveMicrochip Technology
SCHOTTKY BARRIER RECTIFIER 2-PIN(1+TAB) 1.0A, 40V, VF=0.45V POWERMITE T/R
Deep-Dive with AI
Search across all available documentation for this part.
UPS140/TR7
ActiveMicrochip Technology
SCHOTTKY BARRIER RECTIFIER 2-PIN(1+TAB) 1.0A, 40V, VF=0.45V POWERMITE T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UPS140/TR7 | UPS140 Series |
|---|---|---|
| - | - | |
| Capacitance @ Vr, F | 70 pF | 70 pF |
| Current - Average Rectified (Io) | 1 A | 1 A |
| Current - Reverse Leakage @ Vr | 400 µA | 400 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C | -55 °C |
| Package / Case | DO-216AA | DO-216AA |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | Powermite | Powermite |
| Technology | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV | 450 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.19 | |
| Tape & Reel (TR) | 3000 | $ 1.19 | ||
| Microchip Direct | N/A | 1 | $ 0.97 | |
| 100 | $ 0.89 | |||
| 500 | $ 0.87 | |||
| 1000 | $ 0.81 | |||
UPS140 Series
Schottky Barrier Rectifier 2-Pin(1+Tab) 1.0A, 40V, VF=0.45V PowerMite T/R
| Part | Capacitance @ Vr, F | Voltage - DC Reverse (Vr) (Max) [Max] | Technology | Current - Average Rectified (Io) | Speed | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Current - Reverse Leakage @ Vr | Package / Case | Voltage - Forward (Vf) (Max) @ If | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UPS140/TR13 | ||||||||||||
Microchip Technology UPS140E3/TR7 | ||||||||||||
Microchip Technology UPS140E3/TR13 | ||||||||||||
Microchip Technology UPS140/TR7 | 70 pF | 40 V | Schottky | 1 A | 200 mA, 500 ns | -55 °C | 125 °C | 400 µA | DO-216AA | 450 mV | Powermite | Surface Mount |
Microchip Technology UPS140E3/TR13 | 40 V | Schottky | 1 A | 200 mA, 500 ns | -55 °C | 125 °C | 400 µA | DO-216AA | 450 mV | Powermite | Surface Mount | |
Microchip Technology UPS140E3/TR7 |
Description
General part information
UPS140 Series
Low thermal resistance D0-216 package. Low forward voltage.
