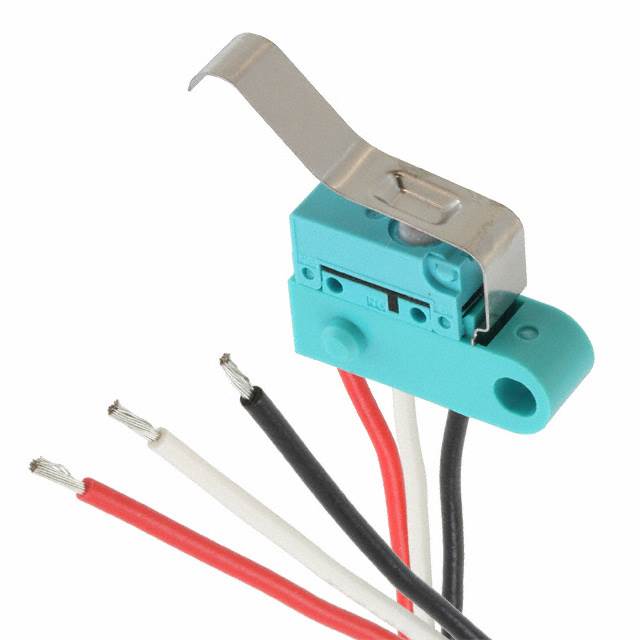

ABJ361841

Obsolete

Panasonic Electric Works

SWITCH SNAP ACT SPDT 0.1A 125V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

SWITCH SNAP ACT SPDT 0.1A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACTION SPDT 2A 125V

Part	Release Force	Circuit	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Mechanical Life	Current Rating (Amps)	Mounting Type	Actuator Type	Overtravel	Overtravel	Termination Style	Operating Position	Operating Position	Operating Force	Voltage Rating - AC	Ingress Protection	Switch Function	Voltage Rating - DC
Panasonic Electric Works ABJ3618609	30 gf	SPDT	1 mm	0.04 in	85 °C	-40 °C	6000 Cycles	500000 Cycles	2 A	Chassis Mount	Leaf, Lever	0.098 in	2.5 mm	Wire Leads	0.63 in	16 mm	130 gf	125 V	IP67 - Dust Tight, Waterproof	On-Mom	30 V
Panasonic Electric Works ABJ361861	30 gf	SPDT	1 mm	0.04 in	85 °C	-40 °C	100000 Cycles	500000 Cycles	100 mA	Chassis Mount	Leaf, Lever	0.098 in	2.5 mm	Wire Leads	0.63 in	16 mm	130 gf	125 V	IP67 - Dust Tight, Waterproof	On-Mom	30 V
Panasonic Electric Works ABJ361841	20 gf	SPDT	1 mm	0.04 in	85 °C	-40 °C	100000 Cycles	500000 Cycles	100 mA	Chassis Mount	Leaf, Lever	0.098 in	2.5 mm	Wire Leads	0.63 in	16 mm	100 gf	125 V	IP67 - Dust Tight, Waterproof	On-Mom	30 V
