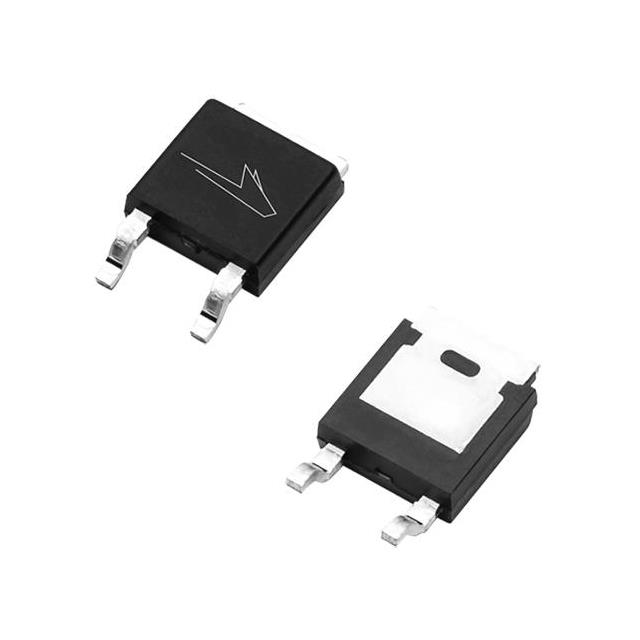

C2D05120E
ObsoleteWolfspeed
DIODE SIL CARB 1.2KV 17.5A TO252
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C2D05120E
ObsoleteWolfspeed
DIODE SIL CARB 1.2KV 17.5A TO252
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | C2D05120E | C2D05120 Series |
|---|---|---|
| Capacitance @ Vr, F | 455 pF | 455 pF |
| Current - Average Rectified (Io) | 17.5 A | 17.5 A |
| Current - Reverse Leakage @ Vr | 200 µA | 200 µA |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C | -55 C |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 | SC-63, DPAK (2 Leads + Tab), TO-252-3, TO-220-2 |
| Reverse Recovery Time (trr) | 0 ns | 0 ns |
| Speed | No Recovery Time | No Recovery Time |
| Supplier Device Package | TO-252-2 | TO-252-2, TO-220-2 |
| Technology | SiC (Silicon Carbide) Schottky | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1.2 kV | 1.2 kV |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V | 1.8 V |
C2D05120 Series
DIODE SIL CARB 1.2KV 17.5A TO252
| Part | Current - Reverse Leakage @ Vr | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Mounting Type | Reverse Recovery Time (trr) | Speed | Technology | Package / Case | Supplier Device Package | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Capacitance @ Vr, F | Voltage - DC Reverse (Vr) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Wolfspeed C2D05120E-TR | 200 µA | 175 ░C | -55 C | Surface Mount | 0 ns | No Recovery Time | SiC (Silicon Carbide) Schottky | DPAK (2 Leads + Tab), SC-63, TO-252-3 | TO-252-2 | 17.5 A | 1.8 V | 455 pF | 1.2 kV |
Wolfspeed C2D05120E | 200 µA | 175 ░C | -55 C | Surface Mount | 0 ns | No Recovery Time | SiC (Silicon Carbide) Schottky | DPAK (2 Leads + Tab), SC-63, TO-252-3 | TO-252-2 | 17.5 A | 1.8 V | 455 pF | 1.2 kV |
Wolfspeed C2D05120A | 200 µA | 175 ░C | -55 C | Through Hole | 0 ns | No Recovery Time | SiC (Silicon Carbide) Schottky | TO-220-2 | TO-220-2 | 17.5 A | 1.8 V | 455 pF | 1.2 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
C2D05120 Series
Diode 1200 V 17.5A Surface Mount TO-252-2
