928930-5
ActiveTE Connectivity AMP Connectors

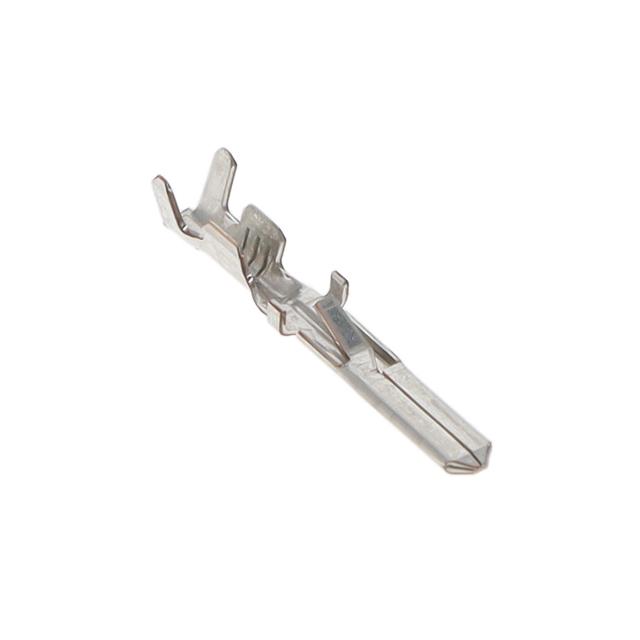

CONN QC TAB 17-20AWG 0.110 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
928930-5
ActiveTE Connectivity AMP Connectors
CONN QC TAB 17-20AWG 0.110 CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 928930-5 | 928930 Series |
|---|---|---|
| Contact Finish | Tin | Gold, Tin |
| Contact Material | Copper | Copper |
| Gender | Male | Male |
| Insulation | Non-Insulated | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 2.31 mm, 0.091 " | 0.091 - 2.31 mm |
| Insulation Diameter [Min] [diameter] | 1.4 mm, 0.055 " | 0.055 - 1.4 mm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tab Length | - | 12.5 mm |
| Tab Length | - | 0.492 in |
| Tab Thickness | 0.032 in | 0.032 in |
| Tab Thickness | 0.81 mm | 0.81 mm |
| Tab Width | 2.79 mm | 2.79 mm |
| Tab Width | 0.11 " | 0.11 " |
| Terminal Type | Standard | Standard |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17 AWG | 17 AWG |
928930 Series
FF 110 TAB 0.5-1 MM2 .080 F PLAI
| Part | Contact Material | Tab Width | Tab Width | Insulation | Tab Length | Tab Length | Termination | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Wire Gauge [Min] | Wire Gauge [Max] | Gender | Tab Thickness | Tab Thickness | Mounting Type | Terminal Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 928930-3 | Copper | 2.79 mm | 0.11 " | Non-Insulated | 12.5 mm | 0.492 in | Crimp | 0.055 ", 1.4 mm | 0.091 ", 2.31 mm | 17 AWG | 20 AWG | Male | 0.032 in | 0.81 mm | Free Hanging (In-Line) | Standard | |
TE Connectivity AMP Connectors 928930-4 | Copper | 2.79 mm | 0.11 " | Non-Insulated | Crimp | 0.055 ", 1.4 mm | 0.091 ", 2.31 mm | 17 AWG | 20 AWG | Male | 0.032 in | 0.81 mm | Free Hanging (In-Line) | Standard | Gold | ||
TE Connectivity AMP Connectors 928930-5 | Copper | 2.79 mm | 0.11 " | Non-Insulated | Crimp | 0.055 ", 1.4 mm | 0.091 ", 2.31 mm | 17 AWG | 20 AWG | Male | 0.032 in | 0.81 mm | Free Hanging (In-Line) | Standard | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.19 | |||
| Tape & Reel (TR) | 4000 | $ 0.19 | ||
| 8000 | $ 0.17 | |||
| 12000 | $ 0.16 | |||
Description
General part information
928930 Series
0.110" (2.79mm) Quick Connect Male 17-20 AWG Crimp Connector Non-Insulated
