HVA05JB300M
ActiveStackpole Electronics Inc
RES 300M OHM 5% 1/2W AXIAL
HVA05JB300M
ActiveStackpole Electronics Inc
RES 300M OHM 5% 1/2W AXIAL
Description
General part information
HVA05JB300M

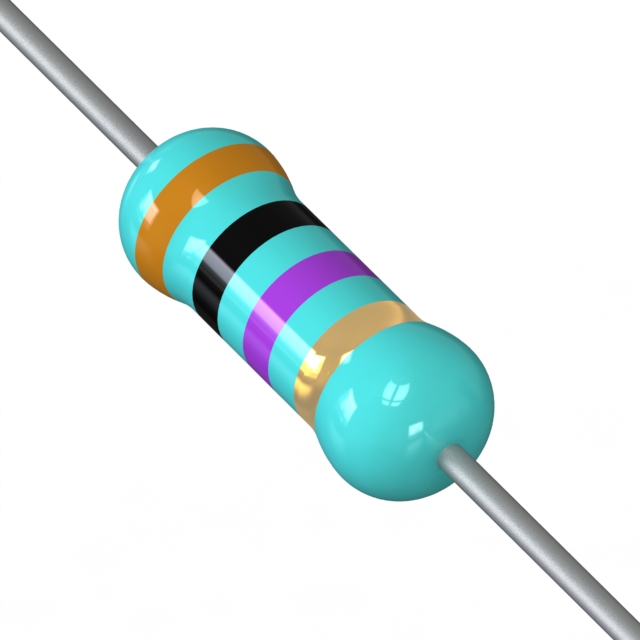

300 MOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial High Voltage Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | HVA05JB300M |
|---|---|
| Composition | Metal Film |
| Features | High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 300 MOhms |
| Size / Dimension Diameter | 0.098 in |
| Size / Dimension Length | 0.236 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
