B-434-V2590

Obsolete

Aearo Technologies LLC, a 3M company

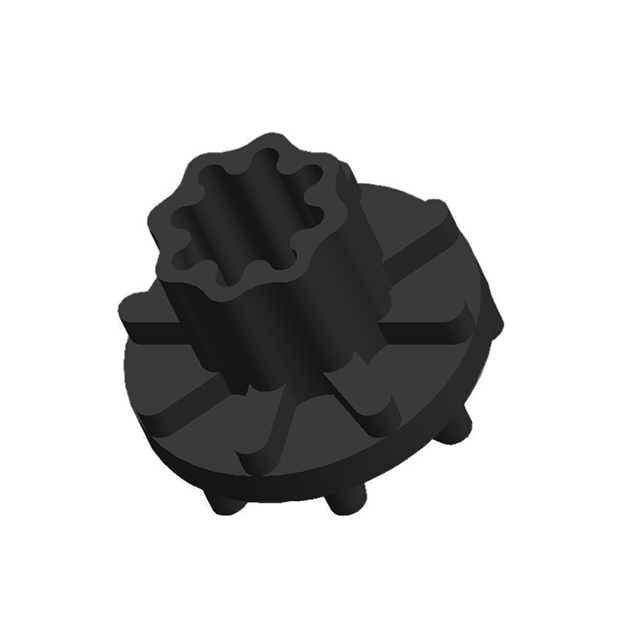

BUSHING 1/2" THERMOPLASTIC

Search across all available documentation for this part.

Obsolete

Aearo Technologies LLC, a 3M company

BUSHING 1/2" THERMOPLASTIC

Technical Specifications

Parameters and characteristics commom to parts in this series

BUSHING 1/2" THERMOPLASTIC

Part	Diameter - Inside [diameter]	Diameter - Inside	Diameter - Inside	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Thickness - Overall	Thickness - Overall [custom]	Length - Below Head [x]	Length - Below Head [x]
Aearo Technologies LLC, a 3M company B-434-V2325	0.5 in	0.5 in	12.7 mm	Thermoplastic	0.813 "	20.65 mm	14.3 mm	0.563 in	7.95 mm	0.313 in
Aearo Technologies LLC, a 3M company B-434-V2750	0.5 in	0.5 in	12.7 mm	Thermoplastic	0.813 "	20.65 mm	14.3 mm	0.563 in	7.95 mm	0.313 in
Aearo Technologies LLC, a 3M company B-434-1	0.5 in	0.5 in	12.7 mm	Thermoplastic	0.813 "	20.65 mm	14.3 mm	0.563 in	7.95 mm	0.313 in
Aearo Technologies LLC, a 3M company B-434-V2575	0.5 in	0.5 in	12.7 mm	Thermoplastic	0.813 "	20.65 mm	14.3 mm	0.563 in	7.95 mm	0.313 in
Aearo Technologies LLC, a 3M company B-434-V2525	0.5 in	0.5 in	12.7 mm	Thermoplastic	0.813 "	20.65 mm	14.3 mm	0.563 in	7.95 mm	0.313 in
Aearo Technologies LLC, a 3M company B-434-V2590	0.5 in	0.5 in	12.7 mm	Thermoplastic	0.813 "	20.65 mm	14.3 mm	0.563 in	7.95 mm	0.313 in
Aearo Technologies LLC, a 3M company B-434-V2599	0.5 in	0.5 in	12.7 mm	Thermoplastic	0.813 "	20.65 mm	14.3 mm	0.563 in	7.95 mm	0.313 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Shoulder Washer 0.563" (14.30mm) Thick Thermoplastic

Technical documentation and resources
