PQ12-30-6-S

Active

Actuonix Motion Devices Inc

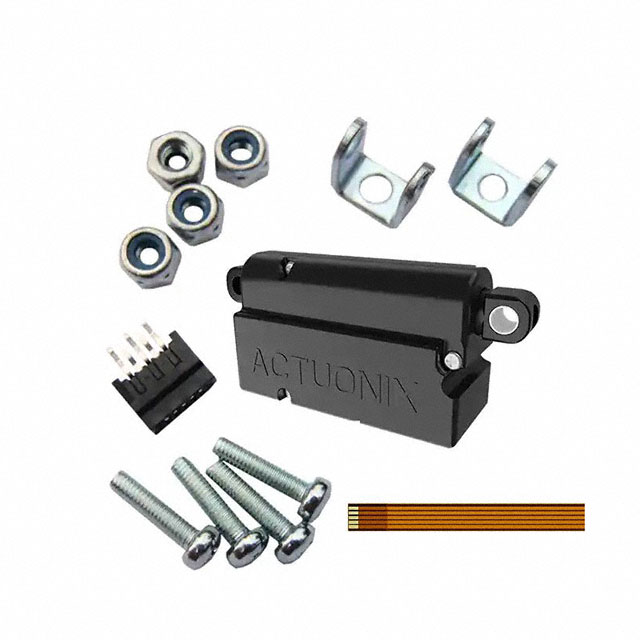

PQ12-S MICRO LINEAR ACTUATOR

Search across all available documentation for this part.

Active

Actuonix Motion Devices Inc

PQ12-S MICRO LINEAR ACTUATOR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PQ12-30-6-S	PQ12-30 Series

Accuracy	0.1 mm	0.1 mm
Construction	Ball Screw	Ball Screw
Duty Cycle	20 %	20 %
Features	Limit Switches	Limit Switches, RC Linear Servo
Feedback Type	-	Potentiometer
Gear Reduction Ratio	30	30
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Load Force (Dynamic)	18 N	18 N
Load Force (Dynamic)	4.05 lbf	4.05 lbf
Motor Type	Brushed	Brushed
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Speed	28 mm/s	28 mm/s
Speed	1.1 in/s	1.1 in/s
Stroke Length	0.787 in	0.787 in
Stroke Length	20 mm	20 mm
Type	Linear Actuator	Linear Actuator
Voltage - Rated	6 VDC	6 - 12 VDC

PQ12-P MICRO LINEAR ACTUATOR

Part	Speed	Speed	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Feedback Type	Stroke Length	Stroke Length	Voltage - Rated	Gear Reduction Ratio	Construction	Motor Type	Ingress Protection	Load Force (Dynamic)	Load Force (Dynamic)	Type	Accuracy	Duty Cycle	Features
Actuonix Motion Devices Inc PQ12-30-6-P	28 mm/s	1.1 in/s	-10 °C	50 °C	Potentiometer	0.787 in	20 mm	6 VDC	30	Ball Screw	Brushed	IP54 - Dust Protected, Water Resistant	18 N	4.05 lbf	Linear Actuator	0.1 mm	20 %
Actuonix Motion Devices Inc PQ12-30-6-S	28 mm/s	1.1 in/s	-10 °C	50 °C		0.787 in	20 mm	6 VDC	30	Ball Screw	Brushed	IP54 - Dust Protected, Water Resistant	18 N	4.05 lbf	Linear Actuator	0.1 mm	20 %	Limit Switches
Actuonix Motion Devices Inc PQ12-30-12-P	28 mm/s	1.1 in/s	-10 °C	50 °C	Potentiometer	0.787 in	20 mm	12 VDC	30	Ball Screw	Brushed	IP54 - Dust Protected, Water Resistant	18 N	4.05 lbf	Linear Actuator	0.1 mm	20 %
Actuonix Motion Devices Inc PQ12-30-6-R	28 mm/s	1.1 in/s	-10 °C	50 °C		0.787 in	20 mm	6 VDC	30	Ball Screw	Brushed	IP54 - Dust Protected, Water Resistant	18 N	4.05 lbf	Linear Actuator	0.1 mm	20 %	RC Linear Servo
Actuonix Motion Devices Inc PQ12-30-12-S	28 mm/s	1.1 in/s	-10 °C	50 °C		0.787 in	20 mm	12 VDC	30	Ball Screw	Brushed	IP54 - Dust Protected, Water Resistant	18 N	4.05 lbf	Linear Actuator	0.1 mm	20 %	Limit Switches

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 85.00
