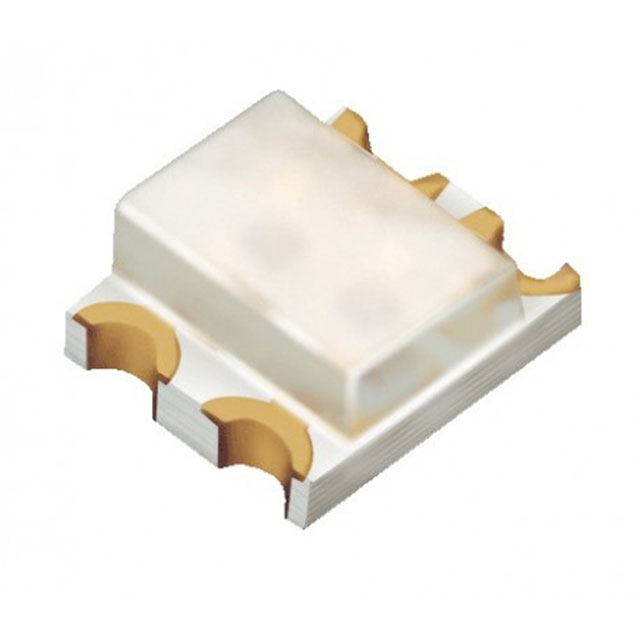

19-223/Y2G6C-A32/2T

Active

Everlight Electronics Co Ltd

LED YLW/YLW-GRN CLEAR 4SMD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

LED YLW/YLW-GRN CLEAR 4SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	19-223/Y2G6C-A32/2T	19-223 Series

Color	Yellow, Yellow-Green	Red, Green, White, Orange, Yellow, Yellow-Green
Configuration	Independent	Independent
Current - Test	20 mA, 20 mA	5 - 20 mA
Height (Max)	-	0.6 mm
Height (Max) [Max] [z]	0.7 mm	0.7 mm
Lens Color	Colorless	Colorless, Yellow
Lens Size [x]	1.5 mm	1.2 - 1.5 mm
Lens Size [y]	1.2 mm	1.1 - 1.5 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Clear	Clear, Diffused
Millicandela Rating	-	29 mcd
Millicandela Rating	-	56 mcd
Millicandela Rating	-	31.5 - 78.5 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	0606, 1616 Metric	0606, 1616 Metric
Package / Case	-	2-SMD, No Lead
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [y]	1.5 mm	1.5 mm
Supplier Device Package	4-SMD	Chip LED, 0606, 4-SMD
Viewing Angle	130 °	130 - 140 °
Voltage - Forward (Vf) (Typ)	2 V, 2 V	2 - 3.2 V
Voltage - Forward (Vf) (Typ)	-	2 V
Voltage - Forward (Vf) (Typ)	-	2 V
Wavelength - Dominant	590 nm, 569 nm	569 - 605 nm
Wavelength - Dominant	-	573 - 624 nm
Wavelength - Peak	-	575 nm
Wavelength - Peak	-	632 nm
Wavelength - Peak	-	611 nm
Wavelength - Peak [custom]	591 nm	591 nm
Wavelength - Peak [custom]	575 nm	575 nm

LED GREEN/RED CLEAR CHIP SMD

Part	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Style	Lens Color	Height (Max) [Max]	Wavelength - Dominant [custom]	Lens Transparency	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Color	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Lens Size [x]	Lens Size [y]	Viewing Angle	Current - Test	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Supplier Device Package	Package / Case	Configuration	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Wavelength - Dominant	Height (Max) [Max] [z]	Package / Case	Wavelength - Peak [custom]	Wavelength - Peak [custom]
Everlight Electronics Co Ltd 19-223SURSYGC/S530-A3/E3/TR8	29 mcd	56 mcd	Rectangle with Flat Top	Colorless	0.6 mm	573 nm, 624 nm	Clear	575 nm	632 nm	Green, Red	1.5 mm	1.6 mm	Surface Mount	1.2 mm	1.1 mm	130 °	20 mA, 20 mA	2 V	2 V	Chip LED	2-SMD, No Lead	Independent
Everlight Electronics Co Ltd 19-223/S2T1D-C30/2T			Rectangle with Flat Top	Yellow			Diffused			Orange, White	1.5 mm	1.6 mm	Surface Mount	1.2 mm	1.5 mm	140 °	5 mA, 5 mA			0606		Independent	611 nm	2.05 V, 3.2 V	31.5 mcd, 78.5 mcd	605 nm	0.7 mm	0606, 1616 Metric
Everlight Electronics Co Ltd 19-223/Y2G6C-A32/2T			Rectangle with Flat Top	Colorless			Clear			Yellow, Yellow-Green	1.5 mm	1.6 mm	Surface Mount	1.5 mm	1.2 mm	130 °	20 mA, 20 mA			4-SMD		Independent		2 V, 2 V		569 nm, 590 nm	0.7 mm	0606, 1616 Metric	591 nm	575 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow, Yellow-Green 590nm Yellow, 569nm Yellow-Green LED Indication - Discrete 2V Yellow, 2V Yellow-Green 0606 (1616 Metric)
