Description
General part information
09031426922

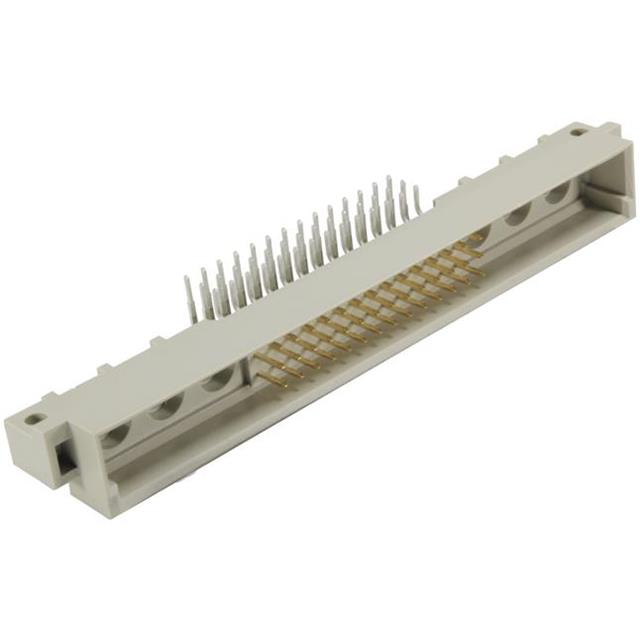

48 (42 + 6 Coax or Power) Position Din Connector Header, Male Pins Gold-Palladium Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 09031426922 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold-Palladium |
| Current Rating | 2 A |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Special) | 6 positions |
| Number of Positions (Standard) | 42 |
| Number of Positions (Total) | 48 |
| Number of Positions Loaded | 42 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Position Types | Power, Coax |
| Style | M |
| Termination | Solder |
