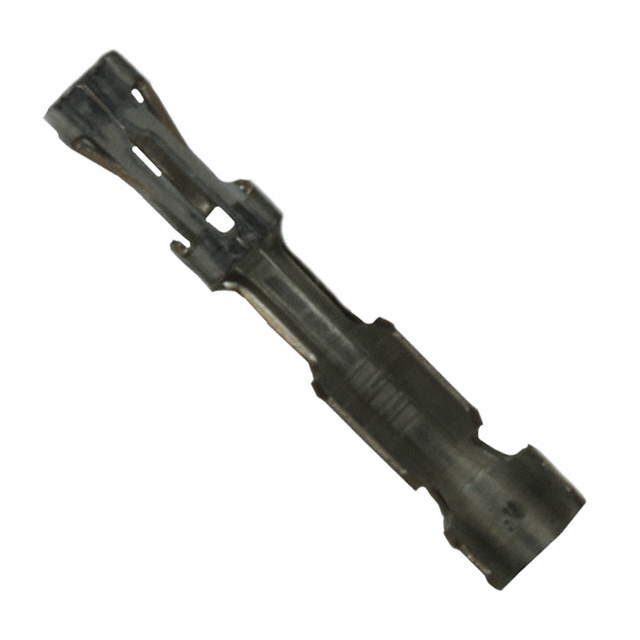

87666-3
ActiveTE Connectivity AMP Connectors
CONN SOCKET 22-26AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87666-3
ActiveTE Connectivity AMP Connectors
CONN SOCKET 22-26AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87666-3 | 87666 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | 78 µin | 15 - 78 µin |
| Contact Finish Thickness | 1.98 µm | 0.38 - 1.98 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
87666 Series
CONN SOCKET 22-26AWG CRIMP TIN
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Pin or Socket | Contact Finish |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87666-3 | 22 AWG | 26 AWG | 78 µin | 1.98 µm | Crimp | Socket | Tin |
TE Connectivity AMP Connectors 87666-2 | 22 AWG | 26 AWG | 30 Áin | 0.76 Ám | Crimp | Socket | Gold |
TE Connectivity AMP Connectors 1-87666-9 | 22 AWG | 26 AWG | 15 µin | 0.38 µm | Crimp | Socket | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.29 | |
| 10 | $ 0.25 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.16 | |||
| Tape & Reel (TR) | 12500 | $ 0.14 | ||
| 25000 | $ 0.14 | |||
| 37500 | $ 0.13 | |||
| 62500 | $ 0.13 | |||
Description
General part information
87666 Series
Socket Contact Tin 22-26 AWG Crimp
