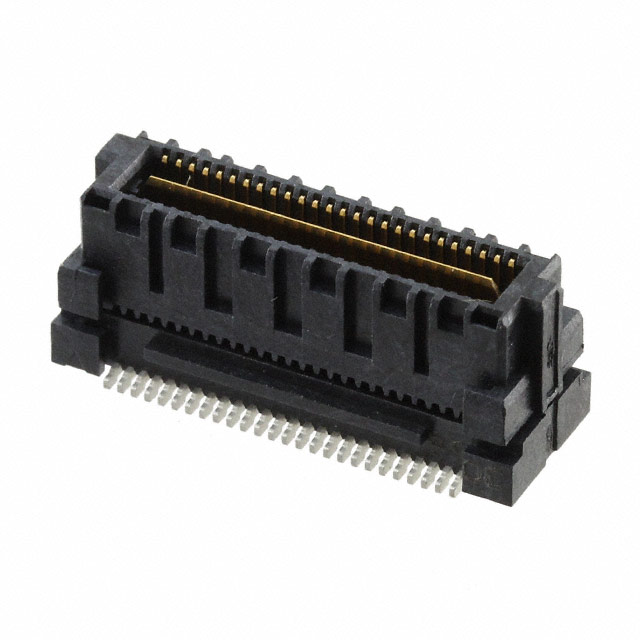

ASP-129637-01

Active

Samtec Inc.

CONN HDR 52POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 52POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ASP-129637-01

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Height Above Board [z]	8.68 mm
Height Above Board [z]	0.342 in
Mounting Type	Surface Mount
Number of Positions	52
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

CONN HDR 52POS SMD GOLD

Part	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Number of Positions	Contact Finish	Number of Rows	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. ASP-129637-01	8.68 mm	0.342 in	0.64 mm	0.025 in	Surface Mount	Header, Outer Shroud Contacts	52	Gold	2	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

52 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
