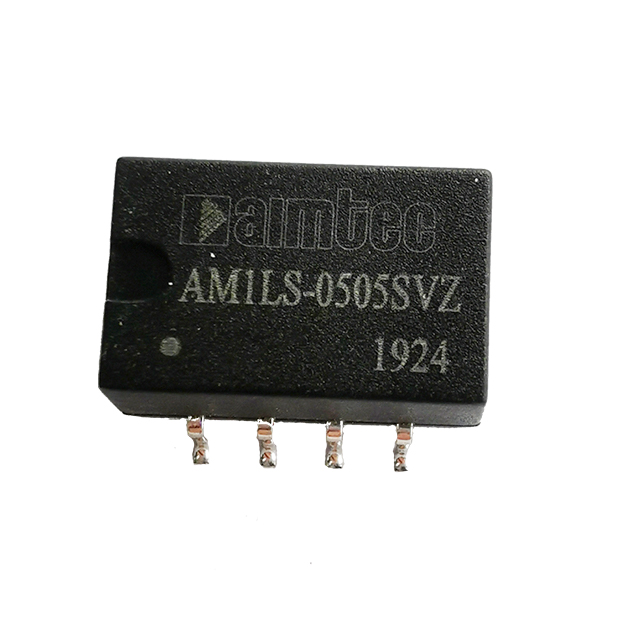

Specification	AM1LS-0505SH30VZ

Applications	ITE (Commercial)
Current - Output (Max)	200 mA
Efficiency	82 %
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package Leads	10 Leads
Package Name	SMD, 12-SMD Module
Power (Watts)	1 W
Size / Dimension Height	0.29 in
Size / Dimension Length	0.6 in
Size / Dimension Width	0.34 in
Type	Isolated Module
Voltage - Input (Max)	5.5 V
Voltage - Input (Min)	4.5 V
Voltage - Isolation	3 kV
Voltage - Output 1	5 V

AM1LS Series

Part	Voltage - Isolation	Voltage - Input (Max)	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Current - Output (Max)	Efficiency	Approval Agency	Number of Outputs	Voltage - Input (Min)	Voltage - Output 1	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Mounting Type	Applications	Power (Watts)	Type	Package Leads	Package Name	Voltage - Output 1 (Min)	Voltage - Output 1 (Max)	Voltage - Output 2	Current - Output (Max) Options
aimtec AM1LS-0503SH30-NZ	3 kV	5.5 V	SMD	-40 °C	105 °C	303 mA	74 %	cULus cURus	1	4.5 V	3.3 V	0.44 in	0.5 in	0.28 in	Surface Mount	ITE (Commercial)	1 W	Isolated Module
aimtec AM1LS-2409S-NZ	1500 Vrns	26.4 V		-40 °C	105 °C	111 mA	80 %	cURus	1	21.6 V	9 V	0.33 in	0.5 in	0.29 in	Surface Mount	ITE (Commercial)	999 mW	Isolated Module	5 Leads	8-SMD Module
aimtec AM1LS-0524S-NZTR	1500 Vrns	5.5 V	SMD	-40 °C	105 °C	42 mA	80 %	cULus cURus	1	4.5 V	24 V	0.33 in	0.52 in	0.29 in	Surface Mount	ITE (Commercial)	1 W	Isolated Module
aimtec AM1LS-0505DH30VZ	3 kV	5.5 V	SMD	-40 °C	105 °C		82 %		2	4.5 V		0.44 in	0.6 in	0.28 in	Surface Mount	ITE (Commercial)	1 W	Isolated Module			-5 V	5 V	-5 V	100mA
aimtec AM1LS-0505SJZTR	1500 Vrns	5.5 V	SMD	-40 °C	105 °C	200 mA	82 %	cULus cURus	1	4.5 V	5 V	0.33 in	0.52 in	0.29 in	Surface Mount	ITE (Commercial)	1 W	Isolated Module
aimtec AM1LS-0305S-NZ	1500 Vrns	3.63 V	SMD	-40 °C	105 °C	200 mA	74 %	cULus cURus	1	2.97 V	5 V	0.44 in	0.5 in	0.28 in	Surface Mount	ITE (Commercial)	1 W	Isolated Module
aimtec AM1LS-0505DH30-NZ	3 kV	5.5 V		-40 °C	105 °C		82 %	cURus	2	4.5 V	5 V	0.33 in	0.6 in	0.29 in	Surface Mount	ITE (Commercial)	1 W	Isolated Module	6 Leads	10-SMD Module			-5 V	100mA
aimtec AM1LS-0503SJZ	1500 Vrns	5.5 V	SMD	-40 °C	105 °C	303 mA	74 %	cULus cURus	1	4.5 V	3.3 V	0.33 in	0.52 in	0.29 in	Surface Mount	ITE (Commercial)	1 W	Isolated Module
aimtec AM1LS-0503DH30VZ	3 kV	5.5 V	SMD	-40 °C	105 °C	151 mA	74 %		2	4.5 V		0.44 in	0.6 in	0.28 in	Surface Mount	ITE (Commercial)	1 W	Isolated Module			-3.3 V	3.3 V	-3.3 V
aimtec AM1LS-0505SJZ	1500 Vrns	5.5 V		-40 °C	105 °C	200 mA	82 %	cURus	1	4.5 V	5 V	0.34 in	0.52 in	0.29 in	Surface Mount	ITE (Commercial)	1 W	Isolated Module	5 Leads	8-SMD Module SMD
